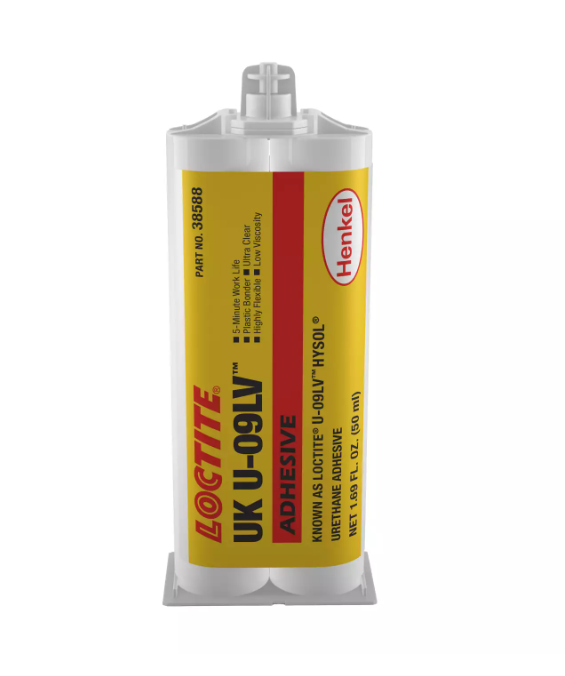

Item Name: LOCTITE® UK U-09LV (Hysol® U-09LV)
Manufacturer: Henkel
Technologies: Two-component urethane adhesive
Color: Resin – Clear liquid; Hardener – Clear liquid; Mixture – Ultra clear
Cure Type: Room temperature cure (heat accelerates)
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
LOCTITE® UK U-09LV (also known as Hysol® U-09LV) is a two-component, low-viscosity urethane adhesive. Once mixed, it cures at room temperature to form an ultra-clear, flexible bond line with exceptional peel strength. The adhesive is designed for applications that demand optical clarity, flexibility, and non-yellowing performance over time. Its cured form exhibits good tensile strength, elongation, dielectric properties, and reliable adhesion across diverse substrates, including plastics, glass, metals, and composites.
Bonding of polycarbonate, plastics, glass, and metals
Ideal for clear, non-yellowing adhesive joints
Suited for applications requiring high flexibility and peel resistance
Used in structural and industrial assemblies where transparency and durability are critical
| Property | Resin | Hardener | Mixture | Notes |
|---|---|---|---|---|
| Uncured | ||||
| Chemical Type | Polyisocyanate | Polyol | — | — |
| Appearance | Clear liquid | Clear liquid | Ultra clear | — |
| Specific Gravity @ 25°C | 1.1 (1.0–1.2) | 1.00 (0.95–1.15) | 1.0–1.2 | — |
| Viscosity @ 25°C (mPa·s) | 920 | 1,050 (600–2,000) | — | Low viscosity |
| Mix Ratio | — | — | 100:91 (by weight) / 1:1 (by volume) | — |
| Working Life | — | — | 10 minutes | @ 25°C |
| Tack Free Time | — | — | 3–24 hours | — |
| Cured Material | ||||
| Dielectric Strength | — | — | 986 V/mil | STM 733 |
| Tensile Strength | — | — | 2,752 psi | STM 708 |
| Elongation | — | — | 149% | Flexible bond line |
| Hardness | — | — | Shore D 47 | STM 707 |
| Glass Transition Temperature | — | — | -3 °C | STM 767 |
| CTE (pre Tg / post Tg) | — | — | 101 / 213 ppm | STM 767 |
| Shear Strength (Steel, Al, etc.) | — | — | 3.3–8 N/mm² | Substrate dependent |
| Block Shear | — | — | Up to 18 N/mm² (Epoxy) | STM 726 |
