• Type: Digital Fluid Dispenser/Controller
• Brand: Metcal
• Capacity: 600 cycles per minute
• Size: 6″ W x 6.5″ L x 7″ H
• System: Timed, Purge Mode with IO Interface. Contact to Techniq VN for details.

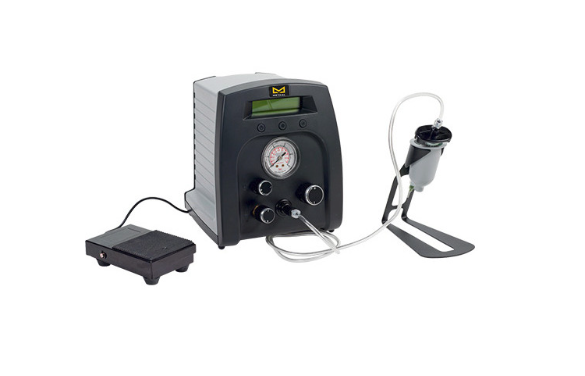

The Metcal DX-250 is a high-precision digital fluid dispenser/controller designed for accurate and repeatable micro-air dispensing. It features a digital timer, vacuum suck-back control, and supports both manual and automated dispensing via an RS-232 interface. The system is ideal for a variety of adhesives and fluids, including low- and high-viscosity materials.
| Specification | Details |
|---|---|
| Brand | Metcal |
| Model | DX-250 |
| Voltage | 100 – 240V AC, 50/60 Hz |
| Operating Pressure | 0 – 6.9 bar (0 – 100 psi) |
| Time Range | 0.020 – 60 seconds |
| Cycle Time | 600 cycles/minute |
| Tolerance | ± 0.001% |
| Vacuum Suck Back | Yes |
| Control Mode | Timed, Purge |
| IO Interface | Voltage/contact closure |
| Certifications | CE, TUV-GS, NRTL |
| Dimensions (W x L x H) | 6″ x 6.5″ x 7″ |
| Warranty | 1 Year |
