Item Number: MX-500 Series (MX-500S, MX-500SPT, MX-500DS, MX-500P, MX-UK1/2/4/5)
Manufacturer: Metcal (OK International)
Application: Professional soldering, precision rework, desoldering, and multi-handpiece configurations for electronics assembly
Key Technology: SmartHeat® self-regulating cartridge heating, integrated power meter, programmable PowerSave, dual-port design
Heating Method: RF SmartHeat® 13.56 MHz technology with power-on-demand, stable idle temperature
Compatibility: Fully compatible with MX upgrade kits, tip-cartridges, hand-pieces, and accessories; worldwide power supply
Specifications: 100–240 VAC, 70 W, 40 W output, 13.56 MHz, 12.1×12.1×22.2 cm, 2.65 kg, CE/cTUVus certified, <2 mV tip-to-ground
1. Product Overview

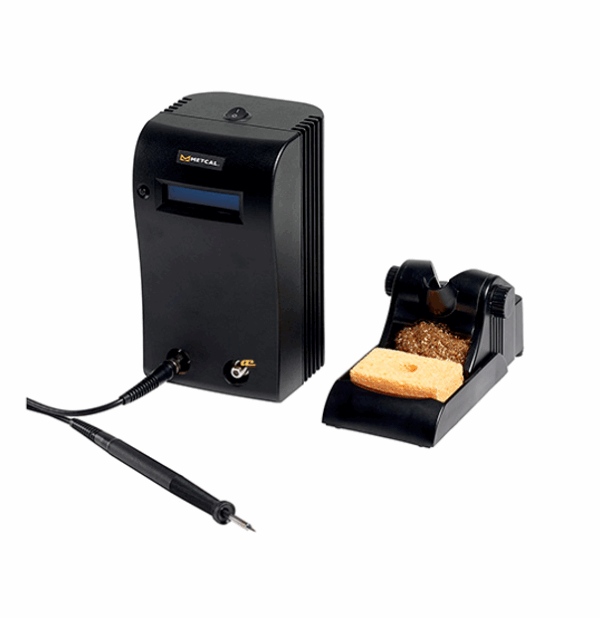

The Metcal MX-500 Soldering and Rework System is a dual-port, switchable power supply platform designed with SmartHeat® Technology. This innovation ensures precise self-regulated temperature control without external adjustments, guaranteeing consistent performance and extended tip life. The unit features a universal power supply, integrated power indication meter, programmable PowerSave mode, and ground fault interrupt for operator safety. With worldwide voltage compatibility and enhanced process control, the MX-500 delivers reliability in a compact form.
2. Applications
The MX-500 series supports a wide range of electronics manufacturing and repair tasks. Configurations include advanced soldering, ultra-fine soldering, precision tweezer rework, and desoldering operations, each tailored to high-precision assembly environments. Its compatibility with previous MX hand-pieces, cartridges, and accessories makes it ideal for upgrade paths, space-saving bench setups, and ESD-safe soldering in industrial, laboratory, or service settings.
3. Typical Properties – Specifications
Input Voltage: 100–240 VAC, 50/60 Hz
Power Consumption: 70 W; Output: 40 W max. at 13.56 MHz
Idle Temperature Stability: ±1.1°C in still air
Tip-to-Ground Potential: <2 mV; Resistance: <2 ohms
Ambient Operating Temperature: 10–40°C; Max Enclosure Temp: 55°C
Dimensions: 12.1 × 12.1 × 22.2 cm; Weight: 2.65 kg
Certifications: cNRTLus, CE, cTUVus
Hand-piece Cable: 183 cm, burn-proof, ESD-safe
