• Item Name: Metcal STTC-145 Soldering Cartridge, Conical Sharp, 700 Series
• Manufacturer: Metcal OKI
• Primary Application: Through-hole soldering, SMD rework, standard soldering operations for electronic assemblies
• Compatibility: MX-500, MX-5000, MX-5200 Systems; MX-RM3E and MX-H1-AV Hand-pieces

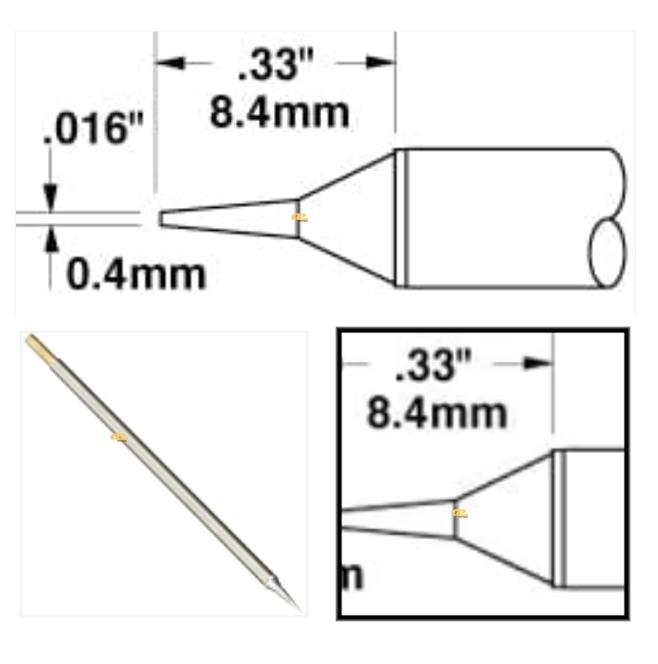

• Tip Geometry & Size: Conical Sharp, 0.4 mm × 14.7 mm (.016″ × .58″), 700 Series, max 700°F
• Technical support: Contact to Techniq VN for details
Product Overview
The Metcal STTC-145 is a precision soldering cartridge from the 700 Series, featuring a conical sharp tip designed for meticulous soldering tasks. It is compatible with MX-500, MX-5000, and MX-5200 Systems, as well as the MX-RM3E and MX-H1-AV handpieces. The cartridge is engineered for standard applications, supporting temperatures up to 700°F (371°C), with a tip dimension of 0.4 mm × 14.7 mm (0.016″ × 0.58″). Its design ensures reliability and precision for both through-hole and surface-mount device (SMD) rework.
Applications
The STTC-145 is primarily intended for detailed soldering operations, including:
Through-hole soldering on electronic components.
Surface-mount device (SMD) rework for complex circuit boards.
Standard soldering tasks within the 700 Series operational parameters.
Typical Properties – Specifications
Tip Shape: Conical sharp
Series: 700 Series
Maximum Temperature: 700°F (371°C)
Tip Dimensions: 0.4 mm × 14.7 mm (0.016″ × 0.58″)
Compatible Systems: MX-500, MX-5000, MX-5200; MX-RM3E and MX-H1-AV handpieces
