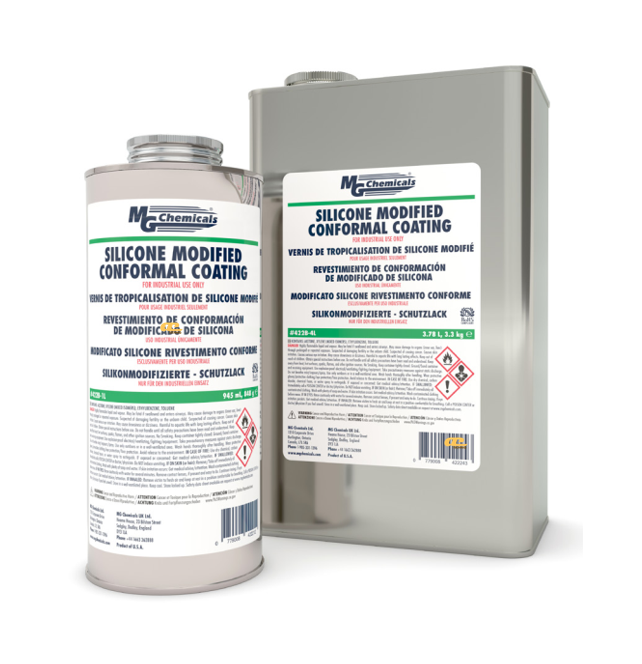

• Item Name: 422B Silicone Modified Conformal Coating
• Manufacturer: MG Chemicals
• Technologies: Acrylic-silicone blend conformal coating
• Color: Clear (fluoresces under UV-A light)
• Cure Type: Room temperature (48 h) or oven cure (20 min @ 65 °C)
• Package Size: 945 mL, 3.78 L, 18.9 L
• Shelf Life: 5 years
422B Silicone Modified Conformal Coating is a one-part acrylic-silicone blend designed to cure to a flexible, durable, and smooth protective layer. It provides strong resistance against corrosion, fungus, moisture, dust, dirt, and static discharge. With a quick handling time of just 8 minutes and the ability to withstand high service temperatures up to 200 °C, it minimizes stress on components during thermal cycling. The coating fluoresces under UV-A light for inspection and is UL 94 V-0 certified, ensuring flame resistance.
Protection of printed circuit boards and electronic assemblies.
High-temperature applications requiring flexibility and durability.
Prevention of corrosion, short circuits, high-voltage arcing, and electrostatic discharge.
Suitable for selective coating, spray, brush, and dip applications.
Environments involving moisture, fungus, dirt, and thermal cycling.
| Property | Uncured (Not Mixed) | Cured (After Application) |
|---|---|---|
| Viscosity @ 25 °C | 10 cP | – |
| Density | 0.90 g/mL | – |
| Percent Solids | 28 % | – |
| Shelf Life | 5 years | – |
| VOC Content | 289 g/L | – |
| Resistivity | – | 1.2 × 10¹⁵ Ω·cm |
| Dielectric Strength | – | 1,056 V/mil |
| Dielectric Withstand Voltage | – | >1,500 V |
| Dielectric Constant @ 1 MHz | – | 1.99 |
| Dissipation Factor @ 1 MHz | – | 0.012 |
| Glass Transition Temperature (Tg) | – | 29 °C |
| Coefficient of Thermal Expansion | – | 275 ppm/°C (prior Tg) |
| Service Temperature Range | – | -40 to 200 °C |
| Dry Time to Handle | 8 min (1 coat), 15 min (2 coats) | – |
| Minimum Recoat Time | 3 min | – |
| Recommended Film Thickness | – | 25–75 µm |
| Theoretical Coverage @ 25 µm | – | 70,000 cm²/L |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
