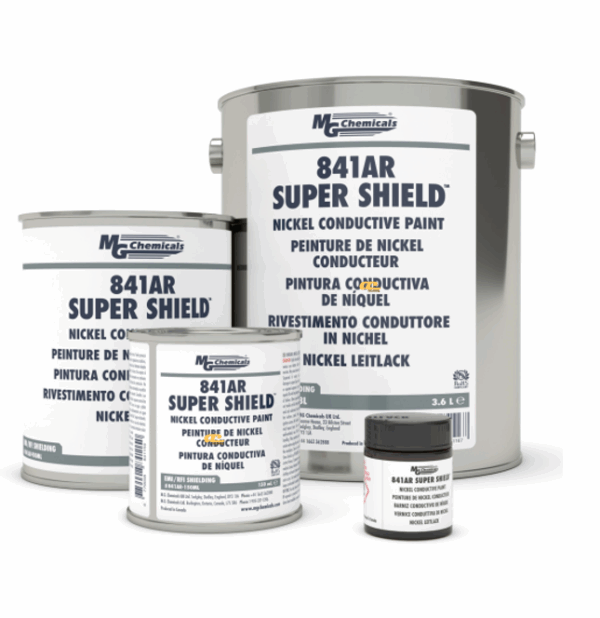

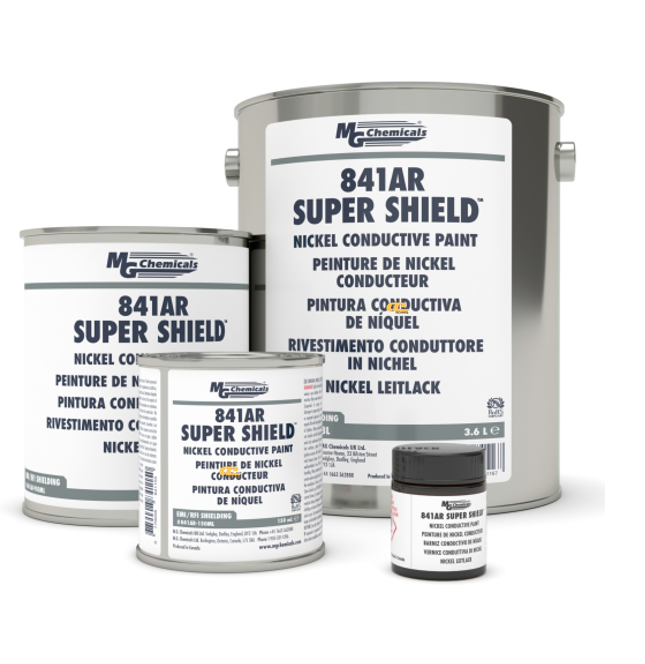

• Item Name: 841AR Super Shield™ Nickel Conductive Paint
• Manufacturer: MG Chemicals
• Technologies: Solvent-based acrylic lacquer with nickel flakes
• Color: Nickel
• Cure Type: Air dry (24 h @ 22 °C) or oven cure (30 min @ 65 °C)
• Package Size: 12 mL, 150 mL, 850 mL, 3.60 L
• Shelf Life: 3 years
841AR Super Shield™ Nickel Conductive Paint is a one-part, solvent-based acrylic lacquer filled with conductive nickel flakes. The coating is smooth, hard, and abrasion-resistant, with strong adhesion to plastics like ABS, PBT, and PVA. It dries quickly without the need for heat curing and offers excellent corrosion resistance, making it suitable even in marine environments. UL Recognized, this product ensures reliable EMI/RFI shielding across broad frequency ranges. It is available in liquid, aerosol, and pen forms for versatile application methods.
Conductive coatings for plastic electronic enclosures.
EMI/RFI suppression for high-frequency electronic devices.
Marine or harsh environment protection with corrosion resistance.
Board-level shielding where thin films are required.
Brush, spray, or selective coating for small- and large-scale applications.
| Property | Uncured (Not Mixed) | Cured (After Application) |
|---|---|---|
| Viscosity @ 25 °C | 1,460 cP | – |
| Density | 1.70 g/mL | – |
| Percent Solids | 57 % | – |
| Shelf Life | 3 years | – |
| VOC Content | 236 g/L | – |
| Resistivity | – | 4.0 × 10⁻³ Ω·cm |
| Surface Resistance @ 50 µm | – | 0.68 Ω/sq |
| Salt Fog Resistance (96 h, 35 °C) | – | Excellent |
| Service Temperature Range | – | -40 to 120 °C |
| Cure Time | – | 24 h @ 22 °C or 30 min @ 65 °C |
| Recommended Film Thickness | – | 50 µm (min. 40 µm) |
| Theoretical Coverage @ 2 mil | – | 44,785 cm²/L (100% transfer) |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
