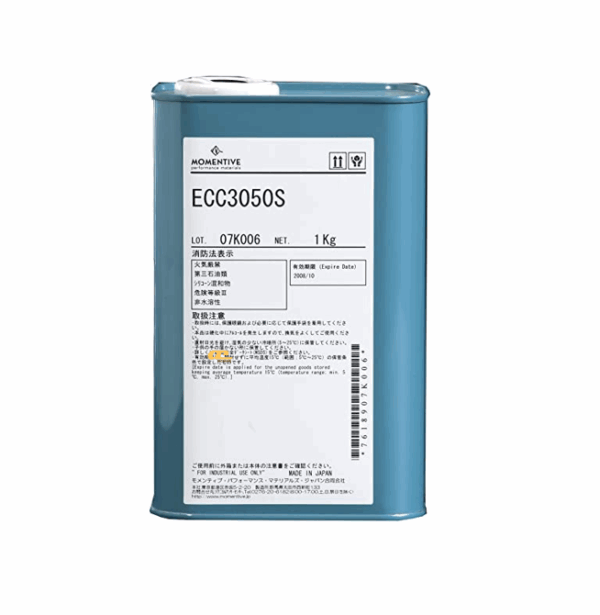

Item Name: ECC3050S
Manufacturer: Momentive Performance Materials
Technologies: Solventless, low viscosity silicone conformal coating
Color: Transparent
Cure Type: Room temperature moisture cure or low temperature oven cure (<60°C)
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
ECC3050S is a low-viscosity, solventless silicone conformal coating that cures rapidly at room temperature to form a soft, transparent silicone rubber. It can also be cured using a low-temperature oven (<60°C) to reduce handling times, making it suitable for high-volume production of printed circuit board assemblies, even with temperature-sensitive components. Key advantages include fast curing, low VOC formulation, excellent adhesion, low modulus for minimal stress, and suitability for spray or flow coating applications.
High-volume conformal coating of printed circuit boards (PCBs)
Protection of temperature-sensitive electronic components
Moisture and environmental protection for electronics
Suitable for spray or flow coating operations in controlled environments
| Property | Before Curing | After Curing (3 days @ 23°C/50% RH) |
|---|---|---|
| Viscosity (mPa·s, 23°C) | 550 | – |
| Tack-Free Time (min, 23°C/50% RH) | 5 | – |
| Cure Time (min, 23°C/50% RH) | 30 | – |
| Cure Time (min, 60°C/15% RH) | 2 | – |
| Appearance | – | Transparent |
| Specific Gravity (23°C) | – | 0.98 |
| Hardness (Type A) | – | 22 |
| Volume Resistivity (MW·m / ohm·cm) | – | 1×10⁷ / 1×10¹⁵ |
| Dielectric Strength (kV/mm) | – | 20 (508 v/mil) |
| Dielectric Loss (@60Hz) | – | 0.001 |
| Dielectric Constant (@60Hz) | – | 2.60 |
