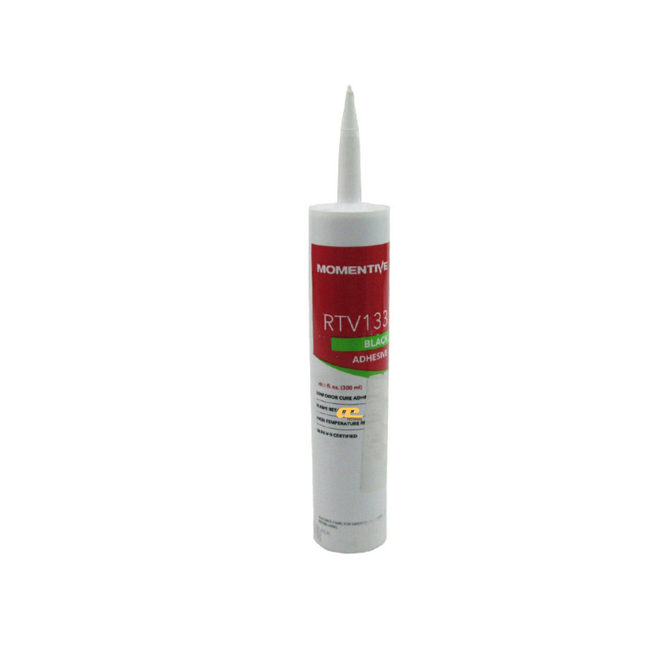

Item Name: RTV133
Manufacturer: Momentive Performance Materials
Technologies: One-component, silicone rubber adhesive sealant
Color: Black
Cure Type: Room temperature, atmospheric moisture cure (alcohol vapor release)
Package Size: Plastic caulking cartridges, bulk containers – Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
RTV133 is a one-component, black, ready-to-use silicone rubber adhesive sealant designed for applications in electronics, aerospace, appliances, transportation, and other industries where fire resistance is critical. It cures at room temperature upon exposure to atmospheric moisture, forming a tough, durable, and resilient silicone rubber. The sealant exhibits low odor during curing, releases alcohol vapor instead of acetic acid, and has a thixotropic paste consistency suitable for horizontal, vertical, and overhead surfaces up to 6 mm thick. It offers excellent electrical insulation, high-temperature resistance, low-temperature flexibility, and weatherability with UL-94 V-0 or V-1 flammability rating.
Industrial applications where reduced flammability of finished products is essential.
Coatings and encapsulation of electronic and integrated circuits, semiconductors, and electronic part assemblies.
Suitable for confined work areas due to low odor cure.
Bonds to metals, glass, ceramic, silicone rubber, some rigid plastics, and flexible plastics free of fugitive plasticizers.
Primers recommended for difficult-to-bond substrates.
Before Mixing / Uncured
| Property | RTV133 |
|---|---|
| Color | Black |
| Consistency | Soft, spreadable paste |
| Specific Gravity | 1.23 |
| Application Rate (gm/min) | 650 |
| Tack-Free Time (hours) | 1 |
After Curing
| Property | RTV133 |
|---|---|
| Hardness (Shore A) | 45 |
| Tensile Strength (kg/cm²) | 46 (650 lb/in²) |
| Elongation (%) | 250 |
| Shear Strength (kg/cm²) | 12 (170 lb/in²) |
| Dielectric Strength (kV/mm) | 20 (500 v/mil) |
| Dielectric Constant @ 100 Hz | 2.8 |
| Dissipation Factor @ 100 Hz | 0.001 |
| Volume Resistivity (ohm-cm) | 3×10¹⁵ |
| Brittle Point (°C) | < -60 (< -75°F) |
| Thermal Conductivity (W/mK) | 0.21 |
| Coefficient of Expansion (cm/cm,°C) | < 27×10⁻⁵ |
| Flammability (UL94, 3.38 mm) | V-0 |
