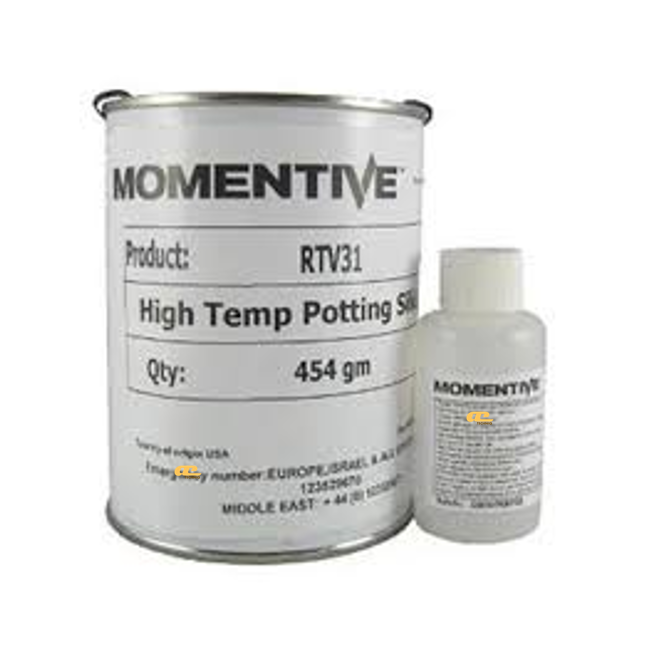

Item Name: RTV31, RTV60, RTV88
Manufacturer: Momentive Performance Materials
Technologies: Two-part, high-temperature silicone elastomers (base compound + curing agent)
Color: Red
Cure Type: Room temperature cure with adjustable catalysts (DBT, STO, RTV9811, RTV9950, RTV9910)
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
RTV31, RTV60, and RTV88 are high-temperature, two-part silicone elastomers supplied as a base with DBT (dibutyl tin dilaurate) as the standard curing agent. These solvent-free compounds cure at room temperature to durable, resilient rubbers and differ mainly in uncured viscosity. Cure speed and work time can be adjusted by varying the type or concentration of the curing agent.
Temperature Range:
Continuous: -54°C to 260°C (-65°F to 500°F)
Short-term: up to 316°C (600°F)
Key Benefits:
Variable work times and cure rates
Room temperature cure
Excellent adhesion with primer
Excellent release properties
Retains elastomeric properties at high and low temperatures
Potting and encapsulating electric motors and transformers
Fabrication of rubber parts
Casting molds for low-melting point metals
Rubber rollers and release applications
Thermal insulation
Deep section curing and automated mixing
Uncured RTV Base Compounds
| Property | RTV31 | RTV60 | RTV88 |
|---|---|---|---|
| Color | Red | Red | Red |
| Consistency | Pourable | Pourable | Spreadable Paste |
| Viscosity (cps) | 25,000 | 47,000 | 880,000 |
| Specific Gravity | 1.42 | 1.48 | 1.47 |
With 0.5% DBT Curing Agent
| Property | RTV31 | RTV60 | RTV88 |
|---|---|---|---|
| Work Time @ 25°C (hrs) | 2 | 2 | 0.75 |
| Cure Time @ 25°C (hrs) | 24 | 24 | 24 |
Cured Properties (0.5% DBT, 7 days at 25°C, 50% RH)
| Property | RTV31 | RTV60 | RTV88 |
|---|---|---|---|
| Hardness (Shore A) | 54 | 57 | 58 |
| Tensile Strength (kg/cm² / psi) | 61 (870) | 70 (990) | 59 (830) |
| Elongation (%) | 170 | 120 | 120 |
| Tear Strength (kg/cm / lb/in) | 5 (29) | 7 (40) | 8 (42) |
| Shrinkage (%) | 0.6 | 0.6 | 0.6 |
| Dielectric Strength (kV/mm / v/mil) | 17 (430) | 17.7 (450) | 17.4 (440) |
| Dielectric Constant @ 1000 Hz | 4.4 | 4.0 | 4.3 |
| Dissipation Factor @ 1000 Hz | 0.03 | 0.02 | 0.03 |
| Volume Resistivity (ohm-cm) | 1.6×10¹⁴ | 4.4×10¹⁴ | 2.8×10¹⁴ |
| Useful Temperature Range (°C) | -54 to 260 | -54 to 260 | -54 to 260 |
| Thermal Conductivity (W/m·K) | 0.31 | 0.31 | 0.31 |
| Coefficient of Expansion (cm/cm°C) | 20×10⁻⁵ | 20×10⁻⁵ | 20×10⁻⁵ |
| Specific Heat (cal/g°C / BTU/lb°F) | 0.35 / 0.35 | 0.35 / 0.35 | 0.35 / 0.35 |
