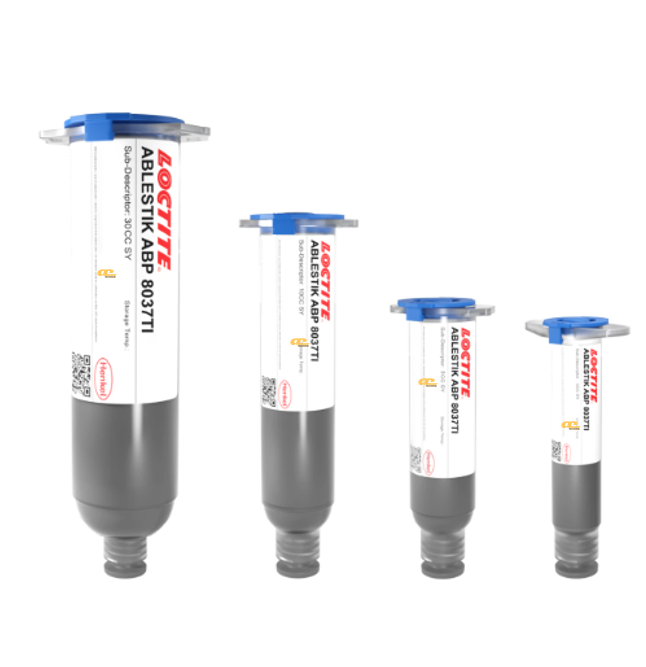

• Item Name: LOCTITE ABLESTIK ABP 8037TI
• Manufacturer: Henkel
• Technologies: Acrylate
• Color: Silver paste
• Cure Type: Heat cure
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 12 month
LOCTITE ABLESTIK ABP 8037TI is a silver-filled acrylate adhesive formulated for high-reliability die attach applications. With 82% silver filler, it offers excellent electrical and thermal conductivity, strong adhesive performance, hydrophobicity, and stability at elevated temperatures. The material is ideal for attaching integrated circuits and components to metal leadframes and advanced substrates, including silver-plated copper and NiPdAu preplated leadframes.
Die attach on a wide variety of metals and ceramic surfaces
Attachment of ICs and components on silver-plated copper and preplated leadframes
High thermal and electrical conductivity assemblies requiring reliable performance
| Property | Unit | Still Not Mixed | After Mixed |
|---|---|---|---|
| Thixotropic Index (0.5/5 rpm) | – | 5.8 | – |
| Viscosity, Brookfield HA, 25°C, Spindle 51, 5 rpm | mPa·s (cP) | 11,000 | – |
| Work Life @ 25°C | hours | 24 | – |
| Shelf Life @ -40°C | days | 365 | – |
| Cure Schedule | – | 30 min ramp to 175°C, hold 30 min @175°C | Alternate: 30 min ramp to 150°C, hold 30 min @150°C |
| Coefficient of Thermal Expansion, below Tg | ppm/°C | – | 62 |
| Coefficient of Thermal Expansion, above Tg | ppm/°C | – | 94 |
| Glass Transition Temperature (Tg) | °C | – | 46 |
| Thermal Conductivity | W/(m·K) | – | 4.1 |
| Young’s Modulus (E) @ -65°C | N/mm² (psi) | – | 8,400 (1,218,317) |
| Young’s Modulus (E) @ 25°C | N/mm² (psi) | – | 5,900 (855,722) |
| Young’s Modulus (E) @ 100°C | N/mm² (psi) | – | 4,100 (594,654) |
| Young’s Modulus (E) @ 150°C | N/mm² (psi) | – | 2,900 (420,609) |
| Young’s Modulus (E) @ 200°C | N/mm² (psi) | – | 1,600 (232,060) |
| Young’s Modulus (E) @ 250°C | N/mm² (psi) | – | 1,300 (188,549) |
| Young’s Modulus (E) @ 300°C | N/mm² (psi) | – | 1,700 (246,564) |
| Extractable Ionic Content @100°C | ppm | – | Cl- 10, Na+ 20, K+ 1 |
| Volume Resistivity | ohm·cm | – | 6.00×10⁻⁵ |
| Die Shear Strength 120×120 mil Ag/Cu LF @25°C | Kg | – | 17.6 |
| Die Shear Strength 120×120 mil Ag/Cu LF @270°C | Kg | – | 7.4 |
| Die Shear Strength 120×120 mil Si on PPF LF @25°C | Kg | – | 17.5 |
| Die Shear Strength 120×120 mil Si on PPF LF @270°C | Kg | – | 6.9 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
