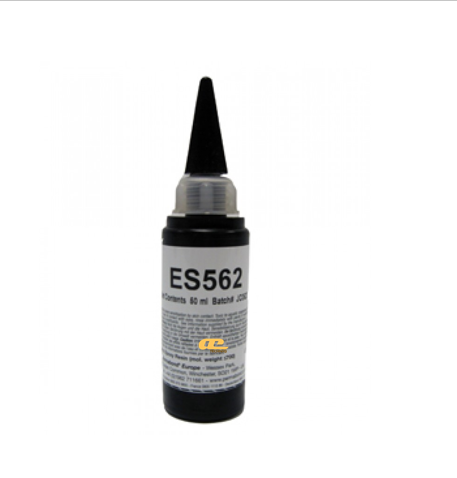

• Item Name: PERMABOND® ES562
• Manufacturer: Permabond
• Technologies: Epoxy Resin
• Color: White
• Cure Type: Heat cure (oven, induction, infrared, hotplate, or hot-air gun)
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 6 months
PERMABOND® ES562 is a single-part, heat-cure epoxy adhesive designed for bonding metals and composites. It flows like solder during curing, self-levels due to its low viscosity, and delivers excellent adhesion, high shear strength, and resistance to vibration, chemicals, and elevated temperatures. It can replace traditional fastening methods such as soldering, brazing, or mechanical joints.
Bonding of metal surfaces (steel, aluminium, zinc).
Structural bonding in composites.
Replacement of mechanical fasteners, soldering, or brazing.
Suitable for assemblies exposed to vibration, heat, and chemicals.
| Property | Value |
|---|---|
| Chemical composition | Epoxy resin |
| Appearance | White |
| Viscosity @ 25°C | 15,000 – 30,000 mPa·s |
| Specific gravity | 1.2 |
| Flow at high temperature | Free flow |
| Maximum gap fill | 0.25 mm (0.01 in) |
| Cure speed (oven) | 120°C: 45 min; 150°C: 30 min |
| Cure speed (induction) | <3 minutes |
