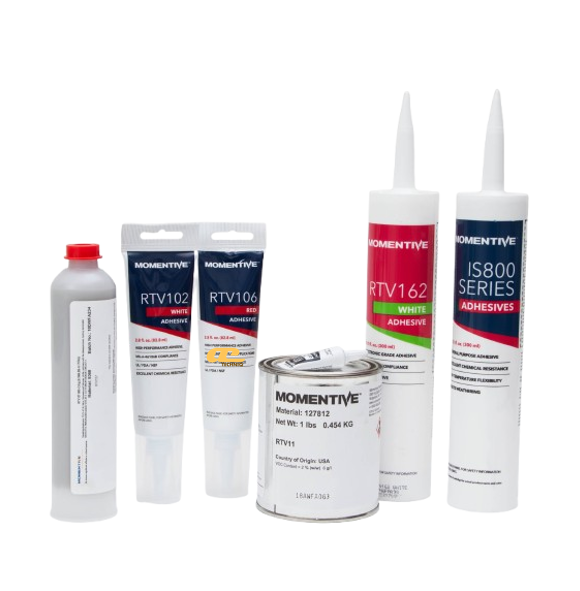

Item Name: RTV100 Series (RTV102, RTV103, RTV106, RTV108, RTV109, RTV112, RTV116, RTV118)
Manufacturer: Momentive Performance Materials
Technologies: One-component, acetic acid cure, silicone adhesive/sealants (paste and self-leveling grades)
Color: RTV102 (White), RTV103 (Black), RTV106 (Red), RTV108 (Translucent), RTV109 (Aluminum), RTV112 (White), RTV116 (Red), RTV118 (Translucent)
Cure Type: Room temperature, moisture cure (acetic acid release)
Package Size: 100 g aluminum tubes, 300/333 ml cartridges, bulk containers
Shelf Life: Contact to Techniq VN for details
The RTV100 Series consists of one-component, ready-to-use silicone adhesive sealants that cure at room temperature via atmospheric moisture. They form durable, resilient silicone rubber, releasing acetic acid vapors during cure. The series includes paste-consistency and self-leveling products suitable for vertical, overhead, or difficult-to-reach surfaces. These sealants provide low-temperature flexibility, high-temperature performance, excellent weatherability, ozone and chemical resistance, and superior electrical insulation. Cure depth should not exceed 6mm (1/4 in.), and primers may be recommended for certain difficult-to-bond substrates.
General-purpose bonding, sealing, and electrical insulation
Formed-in-place gaskets for vertical or overhead surfaces (paste products)
Thin-section potting, filling small voids, and self-leveling protective coatings (self-leveling products)
High-temperature sealing for heating elements and critical bonding applications
Food contact surfaces in compliance with FDA, USDA, and NSF standards
UL-recognized applications and certain MIL-A-46106 general- and high-temperature specifications
| Property | Unit | RTV102 / RTV103 / RTV108 / RTV109 | RTV106 / RTV116 / RTV112 / RTV118 |
|---|---|---|---|
| Consistency | – | Paste / Paste / Self-leveling / Self-leveling | Paste / Self-leveling / Self-leveling / Self-leveling |
| Color | – | White / Black / Translucent / Aluminum | Red / Red / White / Translucent |
| Viscosity | poises | – / – / 250 / 200 | – |
| Application Rate | g/min | 400 / 400 / – / – | – |
| Specific Gravity | g/cm³ | 1.05 / 1.07 / 1.09 / 1.05 | – |
| Tack-Free Time | min | 20 / 20 / 30 / 20 | – |
| Hardness, Shore A | – | 30 / 30 / 20 / 25 | – |
| Tensile Strength | kg/cm² | 28 / 26 / 25 / 23 | – |
| Elongation | % | 450 / 400 / 350 / 325 | – |
| Tear Strength | kg/cm | 8 / 7 / – / – | – |
| Shear Strength | kg/cm² | 14 / 14 / 7 / 7 | – |
| Peel Strength | kg/cm | 7 / 7 / 3 / 3 | – |
| Dielectric Strength | kV/mm | 20 / 20 / 16 / 16 | – |
| Dielectric Constant @ 60Hz | – | 2.8 | – |
| Dissipation Factor @ 60Hz | – | 0.001 | – |
| Volume Resistivity | ohm·cm | 3×10¹⁵ / 3×10¹⁴ / 2×10¹⁴ / 6×10¹⁴ | – |
| Brittle Point | °C | -60 | – |
| Max Continuous Temp | °C | 204 / 260 / 260 / 204 | – |
| Max Intermittent Temp | °C | 260 / 315 / 315 / 260 | – |
| Linear Shrinkage | % | 1.0 | – |
| Thermal Conductivity | cal/sec/cm²·°C/cm | 0.0005 | – |
| Coefficient of Expansion | cm/cm·°C | 27×10⁻⁵ | – |
