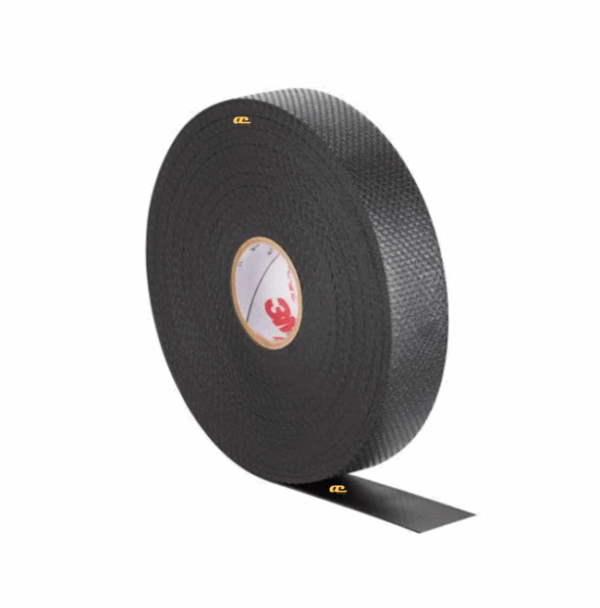

• Item Name: Scotch® Rubber Splicing Tape 23
• Manufacturer: 3M
• Technologies: Self-fusing ethylene propylene rubber backing, rubber-resin adhesive
• Color: Black
• Cure Type: Pressure sensitive (self-adhesive, no curing required)
• Package Size: 90 Rolls per case
• Shelf Life: Contact to Techniq VN for details
3M™ Scotch® Rubber Splicing Tape 23 is a 30 mil (0.76 mm) premium-grade, highly conformable, self-fusing tape made from ethylene propylene rubber (EPR). It features a non-adhesive, rubber-resin backing and a special polyester liner that prevents sticking during application. Rated for continuous use up to 90 °C, the tape provides void-free, moisture-resistant insulation for low and high-voltage applications up to 69 kV. It is non-vulcanizing, shelf-stable, and ASTM-approved, offering excellent electrical properties and professional-grade performance.
Insulation of low and high-voltage joints up to 69 kV
Moisture sealing of electrical connections
Electrical maintenance and repair
Sealing and wrapping for professional electrical installations
| Property | Value |
|---|---|
| Adhesive Type | Non-adhesive |
| Backing Material | Ethylene Propylene Rubber (EPR) |
| Elongation at Break | 1000% |
| Max Operating Temp | 90 °C |
| Product Color | Black |
| Total Thickness | 0.76 mm |
| Roll Length | 9 m |
| Roll Width | 19 mm |
| Tape Grade | Professional |
| Features | Self-fusing, moisture-resistant, special polyester liner |
