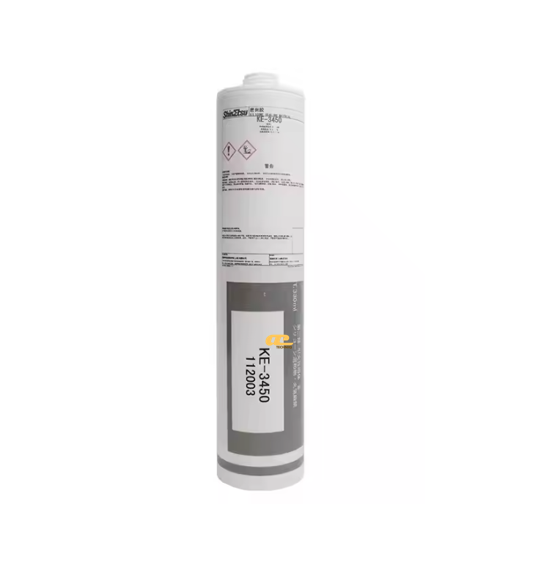

Item Name: KE-3450
Manufacturer: Shin-Etsu Silicones of America, Inc.
Technologies: Silicone adhesive/sealant, thixotropic, UL 94 V-0 certified
Color: Gray
Cure Type: Condensation, room temperature
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
Shin-Etsu KE-3450 is a UL 94 V-0 rated, single-component, room-temperature curing thixotropic silicone adhesive. It cures into a tough, durable elastomer with low odor, neutral cure, and non-corrosive properties, delivering excellent unprimed adhesion to metals, plastics, glass, and ceramics. Its flame-retardant certification (UL 94 V-0) makes it particularly suitable for applications requiring fire safety.
Form-in-place gasketing
Sealing electronics, especially in environments requiring flame resistance
| Property | Value / Description |
|---|---|
| Type | Adhesive / Sealant |
| Cure Type | Condensation |
| Component | Single component |
| UL Listing | Yes (UL 94 V-0 certified) |
| Color | Gray |
| Density @ 23 °C (g/cm³) | 1.17 |
| Snap Time (min) | 4 |
| Shore A Hardness | 42 |
| Tensile Strength (MPa) | 2.50 |
| Elongation (%) | 390 |
| Shear Strength (MPa) | 1.60 |
| Volume Resistivity (TΩ·m) | 1 |
| Dielectric Strength (kV/mm) | 30 |
| Dielectric Constant | 3.2 |
| Dielectric Dissipation Factor | 2 × 10⁻² |
| Thermal Conductivity (W/m·K) | 0.28 |
| Usable Temperature Range (°C) | –40 to +180 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
