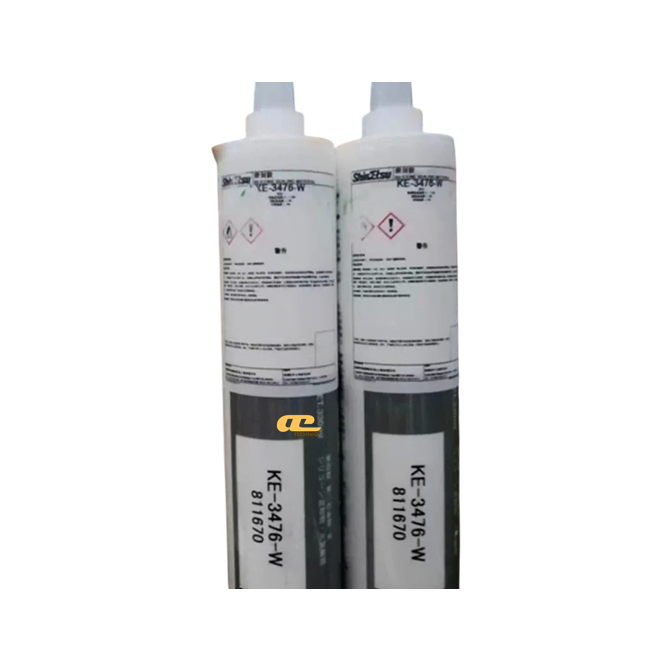

Item Name: KE-3476
Manufacturer: Shin-Etsu Silicones of America, Inc.
Technologies: Silicone conformal coating, single-component, fast cure
Color: Translucent, White
Cure Type: Condensation, room temperature
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
Shin-Etsu KE-3476 is a fast-curing, single-component, room-temperature conformal coating that forms a durable and flexible elastomer for the protection of electronic components. It is designed for selective spray, mass, and flow coating applications, making it well-suited for circuit board protection. The product is low odor, neutral cure, non-corrosive, and provides excellent unprimed adhesion to most substrates.
Conformal coating for circuit boards
Protective coating for electronic components
| Property | Value / Description |
|---|---|
| Type | Conformal Coating |
| Cure Type | Condensation |
| Component | Single component |
| Color | Translucent, White |
| Density @ 23 °C (g/cm³) | 1.03 |
| Viscosity (Pa·s) | 11.0 |
| Cure Conditions | 7 days @ 23 °C / 50% RH |
| Tack-Free Time (min) | 6 |
| Shore A Hardness | 25 |
| Tensile Strength (MPa) | 1.20 |
| Elongation (%) | 240 |
| Usable Temperature Range (°C) | –40 to +180 |
