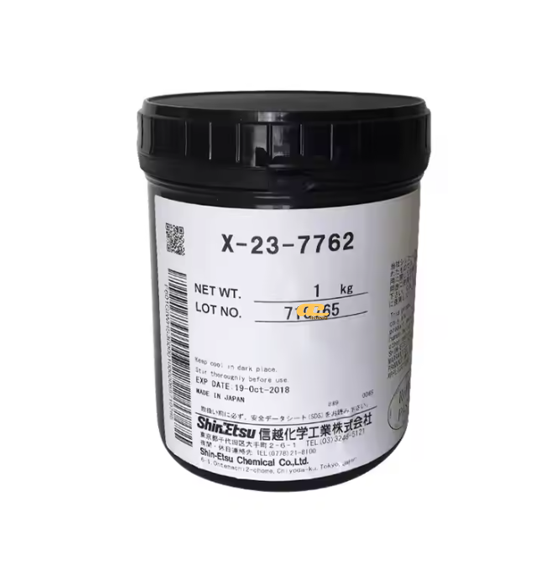

Item Name: Shin-Etsu X23-7762
Manufacturer: Shin-Etsu MicroSi (SEM), USA
Technologies: Thermal interface material (TIM)
Color: Grey
Viscosity: 140 Pa·s (pre-flash), 700 Pa·s (post-flash)
Thermal Conductivity: 6.5 W/m·K (post-flash)
Thermal Resistance: 12.8 mm²·K/W
BLT (Bond Line Thickness): 72 µm (20 psi)
Package Sizes: Syringes (0.5 g, 1 g), Cartridges (55 g), Bulk (1 kg can), custom sizes available
Storage Conditions: 60–85 °F
Shelf Life: Contact Techniq VN for details
Shin-Etsu X23-7762 is a thermal interface material (TIM) designed for high-performance semiconductor devices. It combines high thermal conductivity (6.5 W/m·K post-flash) with low thermal resistance (12.8 mm²·K/W), ensuring excellent heat dissipation for improved device reliability. The product is low-viscosity during application, enabling easy dispensing, stencil printing, or screen printing, and becomes more viscous after solvent evaporation (“application chemical” flash-off). It is RoHS and REACH compliant and widely available in multiple package forms for production and field use.
Thermal management of high-performance semiconductor devices
Use in high-volume production environments requiring consistent thermal performance
Dispensing, stencil, or screen-printing application methods
| Property | Value / Description |
|---|---|
| Color | Grey |
| Viscosity (Pa·s, pre-flash) | 140 |
| Viscosity (Pa·s, post-flash) | 700 |
| Thermal Resistance (mm²·K/W) | 12.8 |
| Thermal Conductivity (W/m·K, post-flash) | 6.5 |
| BLT (Bond Line Thickness, µm @ 20 psi) | 72 |
| Packaging Options | Syringes (0.5 g, 1 g), Cartridges (55 g), Bulk (1 kg can), Custom sizes |
| Storage Conditions | 60 °F – 85 °F |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
