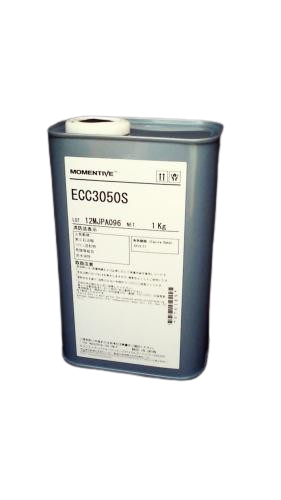

Item Name: SILTRUST™ ECC3050S
Manufacturer: Momentive Performance Materials
Technologies: Low viscosity, solventless silicone conformal coating
Color: Translucent
Cure Type: Moisture cure / room temperature or low-temperature oven cure
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
SILTRUST™ ECC3050S is a low-viscosity, solventless silicone conformal coating that cures rapidly at room temperature to form a soft, transparent silicone rubber. It can also be cured using a low-temperature oven process, making it suitable for high-volume PCB assembly production with temperature-sensitive components. The coating provides excellent long-term moisture protection and minimizes stress on sensitive components due to its low modulus.
Fast curing: Ready to handle in minutes
Solventless formulation: Safer and environmentally friendly
Low viscosity: Suitable for spray or flow coating applications
Excellent adhesion: Long-term protection against moisture
Low stress: Reduces CTE-induced stress on components
Flame retardant: UL94 V-0 recognized (File No. E135148)
| Property | Unit | Value |
|---|---|---|
| Uncured Properties | ||
| Viscosity (23°C) | mPa·s | 550 |
| Tack-Free Time (23°C, 50% RH) | min | 5 |
| Cure Time (23°C, 50% RH) | min | 30 |
| Cure Time (60°C, 15% RH) | min | 2 |
| Cured Properties (3 days @ 23°C, 50% RH) | ||
| Appearance | — | Translucent |
| Specific Gravity (23°C) | — | 0.98 |
| Hardness (Type A) | — | 22 |
| Volume Resistivity | MΩ·cm | 1 × 10⁷ |
| Dielectric Strength | kV/mm | 20 |
| Dielectric Loss (60 Hz) | — | 0.001 |
| Dielectric Constant (60 Hz) | — | 2.60 |
| Low Molecular Siloxane (D4–D10) | wt % | 0.01 |
