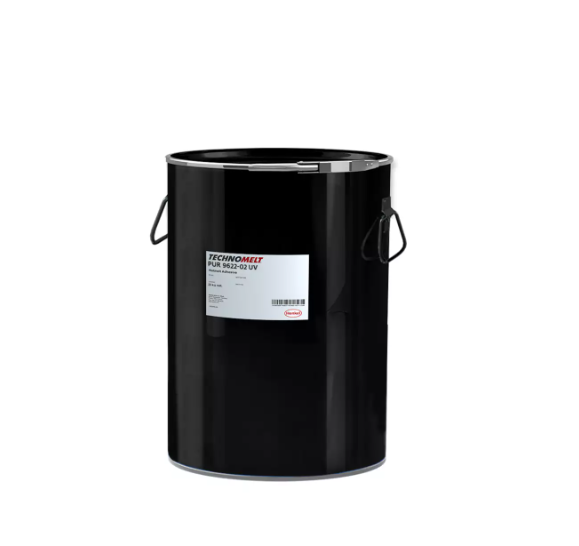

Technomelt PUR 9622-02 UVNA is a high-performance, moisture-curing polyurethane hot melt adhesive used in automotive interiors, wood and furniture, textiles, and foil industries. It offers excellent application properties, fast setting, and high initial strength. Once cured, it forms a hard elastic material with high heat resistance and chemical resistance.
| Property | Value / Description |
|---|---|
| Color | Light ivory, fluorescent |
| Odor | Weak |
| Density | ~1.2 g/cm³ |
| Solids | 100% |
| Viscosity (130°C) | 55 ± 25 Pa.s |
| Softening Point | ~64°C |
| Melting Point | ~75°C |
| Open Time | ~10 ± 5 s (depends on application) |
| Reactivation Time | ~3 hrs (at 23°C/50% RH) |
| Application Temperature | 110°C – 150°C (max 160°C for short periods) |
| Consumption | 20 – 150 g/m² (depends on materials) |
| Property | Value / Description |
|---|---|
| Shear Strength (DIN EN 1465) | ~9 MPa (substrate failure) |
| In-service Temperature Range | -40°C to 120°C |
| Short Exposure Temperature (1 hr max) | Up to 130°C |
