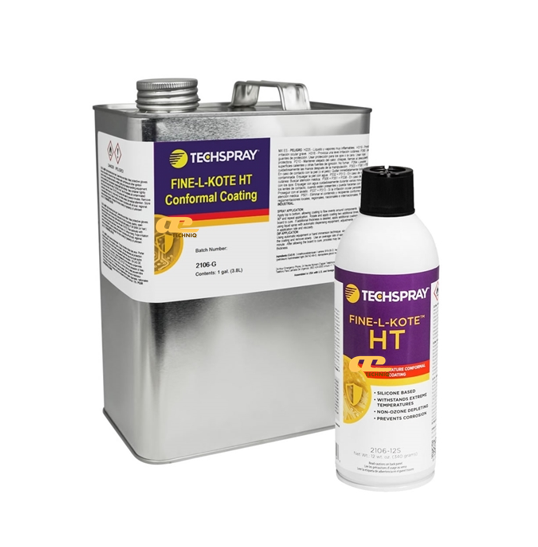

• Item Name: Fine-L-Kote HT High-Temp Silicone Conformal Coating (Product# 2106)
• Manufacturer: Techspray (ITW Contamination Control)
• Technologies: High-temperature silicone conformal coating
• Color: Colorless
• Cure Type: Thermal/air; ambient cure 24 hrs, accelerated 15 min @ 49°C
• Package Size: 12 oz liquid, 1 gallon liquid
• Shelf Life: 1 year
Fine-L-Kote HT High-Temp Silicone Conformal Coating is a fast-drying, high-temperature resistant coating designed to protect electronic assemblies from thermal breakdown. It offers excellent moisture and vibration resistance, flexibility, and dielectric strength, while maintaining electrical insulation properties at extreme temperatures up to 350°C. UL94 V-0 rated and IPC-CC-830B certified, it is compatible with spray, dip, and brush application methods, and includes a UV indicator for inspection. The coating cures rapidly and can be reworked or removed using standard conformal coating removal methods.
High-temperature electronic assemblies
Printed circuit boards in industrial, automotive, and aerospace environments
Components exposed to vibration, moisture, or extreme heat
Rework and repair operations requiring fast-drying, high-temperature protection
| Property | Before Mixing | After Mixing / Applied |
|---|---|---|
| Physical State | Liquid | – |
| Odor | Aromatic | – |
| Color | Colorless | – |
| Percent Volatile | 80% | – |
| Vapor Density | >1 (Air=1) | – |
| Boiling Point | 230ºF (110ºC) | – |
| Flash Point | 40ºF (TAG CC) | – |
| Solubility in Water | Insoluble | – |
| Density | 0.92 g/mL | – |
| VOC | 724 g/L | – |
| Shelf Life | 1 year | – |
| Cure Type | – | Thermal / Air |
| Tack-Free Time | – | 45 min |
| Accelerated Cure | – | 15 min @ 49°C |
| Ambient Cure | – | 24 hr |
| Viscosity | 10–30 cps | – |
| Operating Temp Range | – | -40° to 350°C |
| Dielectric Strength | – | 560 V/mil |
| Insulation Resistance | – | 1.33 × 10¹⁶ Ω |
| Coverage | – | Aerosol 20 ft²/can, 1 gal 880 ft² |
