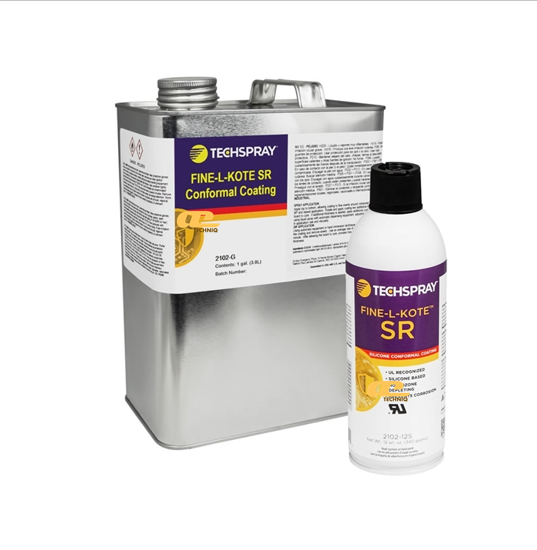

• Item Name: Fine-L-Kote High Viscosity SR Silicone Conformal Coating (Product# 2102-HV)
• Manufacturer: Techspray (ITW Contamination Control)
• Technologies: Silicone conformal coating
• Color: Colorless to light yellow
• Cure Type: Thermal/air; ambient cure 72 hrs, accelerated 30 min @ 32°C + 45 min @ 93°C
• Package Size: 1 gallon liquid
• Shelf Life: 1 year
Fine-L-Kote High Viscosity SR Silicone Conformal Coating is a versatile, high-performance coating designed to protect electronic assemblies across a wide range of environments. It offers excellent thermal, moisture, chemical, and vibration resistance, while maintaining flexibility and dielectric strength. UL94 V-0 rated and IPC-CC-830B compliant, it supports multiple application methods including spray, dip, and brush. The high-viscosity formulation allows for thicker coatings in a single application. Tack-free in 60 minutes, full cure is achieved in 72 hours, providing robust protection and ease of rework.
Protection of printed circuit boards and electronic assemblies in industrial, automotive, and aerospace environments
High-reliability electronics requiring thick conformal coatings
Components exposed to moisture, vibration, or thermal stress
Rework and repair of electronic assemblies
| Property | Before Mixing | After Mixing / Applied |
|---|---|---|
| Physical State | Liquid | – |
| Color | Colorless to light yellow | – |
| Odor | Characteristic | – |
| Flash Point | 39.9ºF (4.4ºC, Closed Cup) | – |
| Flammable Limits | Lower 1.8%, Upper 10% | – |
| Boiling/Condensation Point | 174.2ºF (79ºC) | – |
| Relative Density | 0.83 | – |
| Volatility | 86% (w/w) | – |
| Shelf Life | 1 year | – |
| Cure Type | – | Thermal / Air |
| Tack-Free Time | – | 60 min |
| Accelerated Cure | – | 30 min @ 32ºC, 45 min @ 93ºC |
| Ambient Cure | – | 72 hrs |
| UL 94 Rating | – | V-0 |
| Solids Content | 55% | – |
| Viscosity | 70–80 cps | – |
| Operating Temp Range | – | -65° to 200ºC |
| Dielectric Strength | – | 1.1 kV/mil |
| Coefficient of Thermal Expansion | – | 2.1 × 10⁻⁴ in/in/°C |
| Insulation Resistance | – | 6.87 × 10¹⁵ Ω |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
