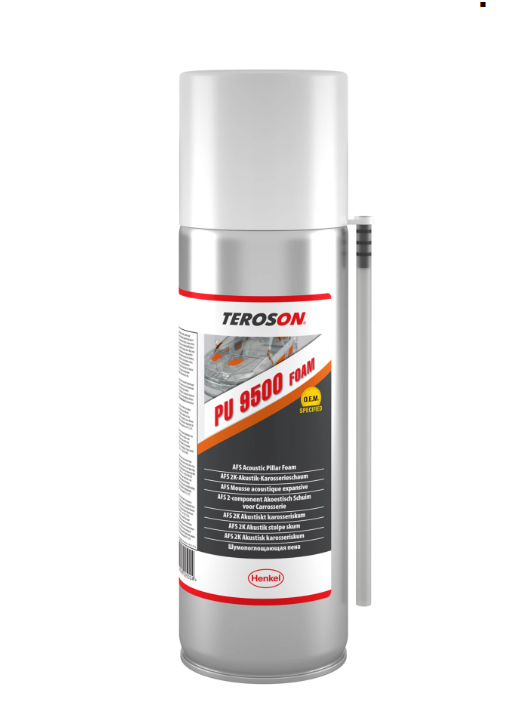

TEROSON PU 9500 FOAM is a 2-part polyurethane-based expanding foam designed for cavity filling and sound-deadening applications. It comes in an aerosol can and does not require moisture for curing. The foam expands by 50–100% and remains dimensionally stable after curing.
Property | Value |
---|---|
Mixing | Shake 20 times |
Color | Silver grey |
Starting time | ~5 sec |
Expansion volume | Up to 100% |
Yield (freely foamed) | 4-5 liters |
Density (freely foamed) | ~35 kg/m³ |
Tack-free time | 15-17 min |
Cuttable after | >25 min |
Cell structure | ~85% closed cells |
Compression resistance (24h) | 20 N/cm² |
Tensile strength | 6 N/cm² (1h), 17 N/cm² (24h) |
Shear strength (24h) | 7 N/cm² |
Water absorption (cut/uncut) | 1.5 vol% / 0.8 vol% |
Dimensional stability | ±5% |
Optimal application temperature | 18-23°C |
Application temperature range | 10-35°C |
Maximum activation temperature | 35°C |
Service temperature range | -40 to 80°C |
