Item Name: tesa® 60256
Manufacturer: tesa SE
Technologies: Electrically conductive self-adhesive tape
Color: Grey
Backing material: Conductive woven
Type of adhesive: Conductive acrylic
Package Size: Contact to Techniq VN for details
Shelf Life: Contact to Techniq VN for details
1. Product overview

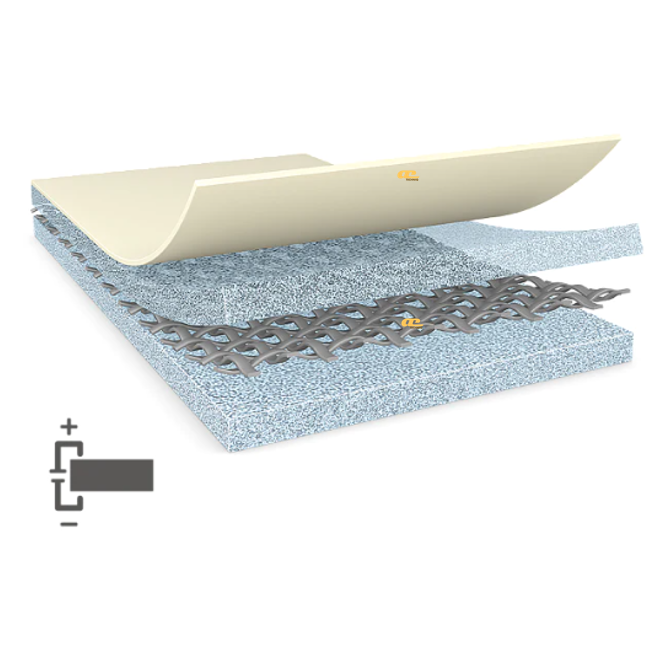

tesa® 60256 is a 200µm grey, double-sided electrically conductive self-adhesive tape. It features a conductive woven backing combined with an electrically conductive acrylic adhesive, ensuring reliable conductivity in XYZ directions. The tape provides strong adhesion, dimensional stability, and resistance under harsh environmental conditions.
2. Applications
EMC applications such as grounding
Electrostatic discharge (ESD) applications
3. Typical Properties
| Property | Value / Description |
|---|---|
| Backing material | Conductive woven |
| Adhesive type | Conductive acrylic |
| Liner type | PE-coated paper, 120 µm, white/blue logo |
| Total thickness | 200 µm |
| Colour | Grey |
| Adhesion to steel (initial) | 4.6 N/cm |
| Adhesion to steel (after 14 days) | 10.6 N/cm |
| Contact resistance (z-direction) | 0.05 Ω / square inch |
| Surface resistance (x-y direction) | 0.2 Ω / square |
| Temperature resistance (short-term) | 160 °C |
| Static shear resistance (23 °C) | Medium |
| Static shear resistance (40 °C) | Low |
| Release of liner | Easy |
| Tear resistance / dimensional stability | High |
