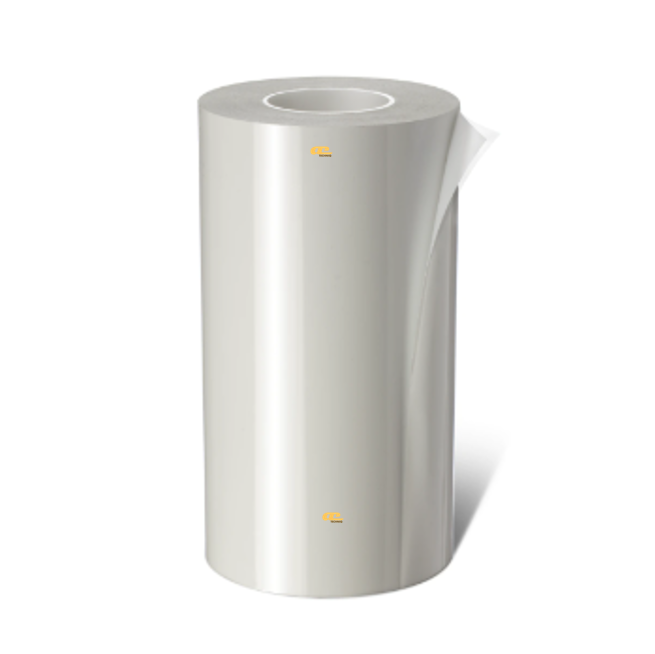

• Item Name: tesa® 61001
• Manufacturer: tesa SE
• Technologies: PCR-PET tape
• Color: Transparent
• Backing material: PET
• Type of adhesive: Water-based acrylic
• Package Size: Contact to Techniq VN for details
• Shelf Life: Contact to Techniq VN for details
1. Product Overview
tesa® 61001 is a 56 µm transparent tape constructed from post-consumer recycled PET backing and coated with a water-based acrylic adhesive. Specially developed for electrical insulation, it combines strong dielectric performance with leakage current protection. The tape demonstrates sustainable design with 70% recycled PET content and reduced environmental impact. It ensures reliability through high tensile strength, anti-repulsion properties, and reworkability, making it both functional and eco-conscious.
2. Applications
Electrical cell-wrapping.
Insulation of metallic components.
General electrical insulation requiring dielectric protection and mechanical strength.
3. Typical Properties
| Property | Value / Description |
|---|---|
| Backing Material | PET (70% PCR content) |
| Adhesive Type | Water-based acrylic |
| Total Thickness | 56 µm |
| Liner Type / Thickness | PET / 23 µm |
| Residual Water Content | 0.05 g/m² |
| Colour | Transparent (liner: white) |
| Tensile Strength | 50 N/cm |
| Elongation at Break | 80% |
| Breakdown Voltage | 6 kV |
| CTI (Adhesive / Backing Side) | 600 V / 400 V |
| Adhesion to Steel | 3.5 N/cm |
| Electrolyte Resistance | Yes |
| Liner Removal Force | 40 cN/cm |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
