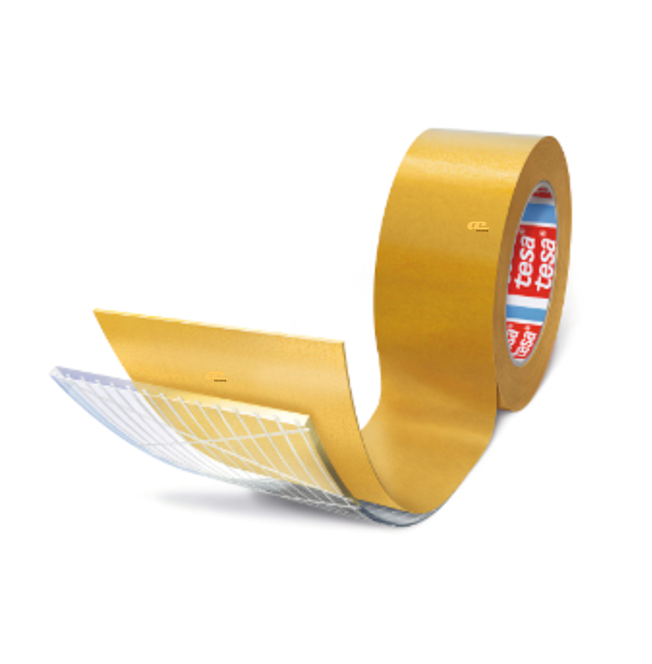

• Item Name: tesa® 66022
• Manufacturer: tesa
• Technologies: Water-based acrylic adhesive, reinforced with PET scrim
• Color: Transparent
• Backing material: None
• Type of adhesive: Water-based acrylic
• Package Size: Contact to Techniq VN for details
• Shelf Life: Contact to Techniq VN for details
tesa® 66022 is a 220 µm reinforced water-based acrylic adhesive tape with PET scrim, specifically developed for automotive interior lamination and mounting. It delivers strong adhesion, high conformability for 3D surfaces, and secure bonding on diverse substrates including plastics, composites, and recycled materials. Engineered as an ultra-low VOC solution (per GB 27630, VDA 278, and Japanese guidelines), it ensures compliance with stringent automotive interior air quality requirements while offering excellent tack, peel strength, and durability up to 200 °C.
Mounting light interior trims on plastics and LSE surfaces
FPC (flexible printed circuits) mounting
Lamination of insulation materials, foams, and decorative fabrics
NVH/BSR prevention laminates for noise and vibration control
HVAC sealing applications
Mounting flooring systems in vehicle interiors
| Property | Value |
|---|---|
| Backing material | None (reinforced PET scrim) |
| Adhesive type | Water-based acrylic |
| Liner | Glassine, brown/blue logo |
| Total thickness | 220 µm |
| Colour | Transparent |
| VOC level | Ultra low, compliant with GB 27630 & VDA 278 |
| Minimum temperature resistance | -40 °C |
| Maximum temperature resistance | 200 °C |
| Tack | Very good |
| Rough surface suitability | Very good |
| Adhesion ABS | 17 N/cm (initial), 18 N/cm (3 days) |
| Adhesion PC | 19.1 N/cm (initial), 19.4 N/cm (3 days) |
| Adhesion PET | 16.2 N/cm (initial), 18.1 N/cm (3 days) |
| Adhesion PP | 14 N/cm (initial), 16 N/cm (3 days) |
| Adhesion Steel | 12.3 N/cm (initial), 17.3 N/cm (3 days) |
