• Item Name: tesa® 68542
• Manufacturer: tesa SE
• Technologies: Double-sided transparent filmic tape
• Color: Transparent
• Backing material: PET film
• Type of adhesive: Tackified acrylic
• Package Size: Contact Techniq VN for details
• Shelf Life: Contact Techniq VN for details
1. Product Overview

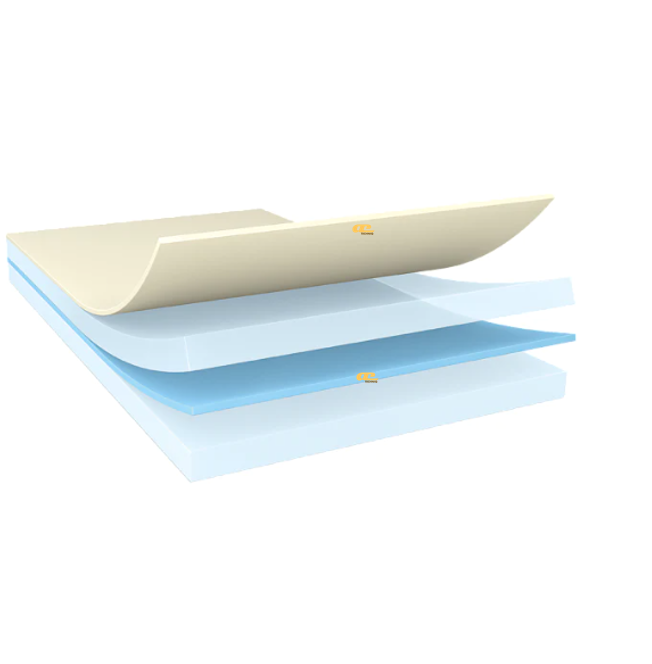

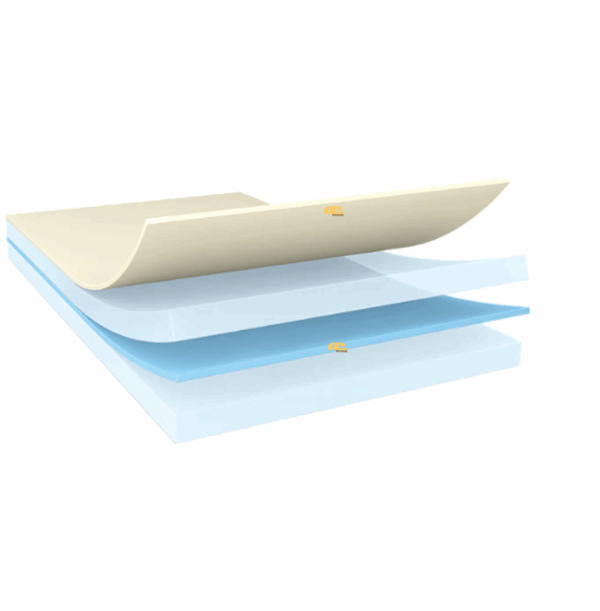

tesa® 68542 is a transparent, double-sided PET filmic tape with a tackified acrylic adhesive. With a thickness of only 50 µm, it provides excellent handling during converting processes while maintaining strong adhesion. The tape demonstrates reliable performance under demanding environmental conditions, including very good resistance to UV, humidity, and softeners. It is engineered for high adhesion levels and stable bonding in industrial applications.
2. Applications
General mounting in electronics
Laminating processes for electronic components
Suitable for bonding where thin, transparent adhesive layers are required
3. Typical Properties
| Property | Value / Description |
|---|---|
| Backing material | PET film |
| Adhesive type | Modified acrylic (tackified) |
| Total thickness | 50 µm |
| Colour | Transparent |
| Elongation at break | 50 % |
| Tensile strength | 20 N/cm |
| Ageing resistance (UV) | Very good |
| Humidity resistance | Very good |
| Softener resistance | Very good |
| Static shear resistance (23°C) | Medium |
| Tack | Good |
| Temperature resistance (long term) | 100 °C |
| Temperature resistance (short term) | 200 °C |
| Adhesion to Steel (initial/14 days) | 5 N/cm → 7.2 N/cm |
| Adhesion to ABS (initial/14 days) | 5 N/cm → 6.1 N/cm |
| Adhesion to Aluminium (initial/14d) | 5 N/cm → 6 N/cm |
| Adhesion to PC (initial/14 days) | 5.3 N/cm → 6.6 N/cm |
| Adhesion to PE (initial/14 days) | 2 N/cm → 2.8 N/cm |
| Adhesion to PP (initial/14 days) | 2 N/cm → 5.3 N/cm |
| Adhesion to PVC (initial/14 days) | 5.2 N/cm → 7.9 N/cm |
| Adhesion to PET (initial/14 days) | 5.2 N/cm → 5.8 N/cm |
