• Item Name: tesa® 69908
• Manufacturer: tesa SE
• Technologies: UV-curable optically clear adhesive tape
• Color: Transparent
• Backing material: None
• Type of adhesive: Acrylic
• Package Size: Contact to Techniq VN for details
• Shelf Life: Contact to Techniq VN for details
1. Product Overview

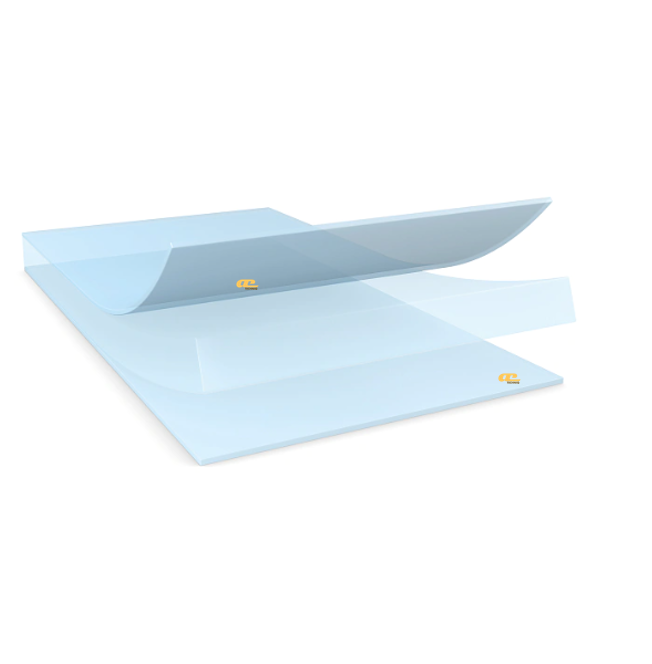

tesa® 69908 is a 200 µm UV-curable optically clear transfer tape, manufactured under clean room conditions to ensure high transparency and minimal haze. Designed for curved or flexible substrates, it offers superior optical clarity, low curing dosage, and excellent durability against temperature, humidity, and UV exposure.
2. Applications
Optically clear lamination of curved cover designs
Optically clear lamination of plastic covers
3. Typical Properties
| Property | Value / Description |
|---|---|
| Backing material | None (transfer tape) |
| Adhesive type | Acrylic |
| Liner material | PET film (transparent) |
| Liner thickness | 50 µm (easy release) / 75 µm (tight release) |
| Tape thickness | 200 µm |
| Colour | Transparent |
| Ageing resistance (UV) | Very good |
| Haze | < 0.3 % |
| Transmittance (380–780 nm) | > 99 % |
| Refractive index | 1.48 |
| Tack | Low |
| Humidity resistance | Very good |
| Adhesion to Glass (initial/UV cured) | 14.4 N/cm → 14.5 N/cm |
| Adhesion to PC (initial/UV cured) | 14.6 N/cm → 14.9 N/cm |
| Suggested UV curing dosage | > 2000 mJ/cm² (UVA 365 nm) |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
