• Item Name: tesa® 7140
• Manufacturer: tesa SE
• Technologies: Natural rubber adhesive
• Color: Contact to Techniq VN for details
• Backing material: PVC film
• Type of adhesive: Natural rubber
• Package Size: Contact to Techniq VN for details
• Shelf Life: 12 months
1. Product Overview

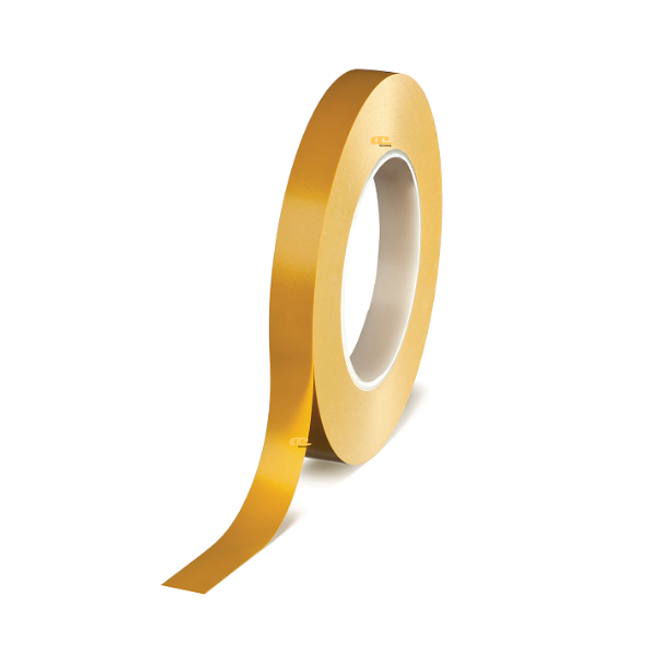

tesa® 7140 is a specialized masking tape for automotive window flange protection. It consists of a PVC and PET film laminate, combining PVC’s durability with PET’s high tensile modulus. The tape enables direct application of window panes onto e-coated flange areas without the need for primers or additional surface pretreatment. It is compatible with e-coats, fillers, and window adhesives, ensuring reliable performance in automotive production processes.
2. Applications
Masking and protection of automotive window flange areas during painting
Allowing direct glass application to e-coated surfaces without primer
Suitable for both manual and robotic application
Usable in converting and die-cutting processes
3. Typical Properties
| Property | Value / Description |
|---|---|
| Backing material | PVC + PET film laminate |
| Adhesive type | Natural rubber |
| Total thickness | 181 µm |
| Tensile strength | 140 N/cm |
| Adhesion to steel | 4 N/cm |
| Temperature resistance | Very good |
| Easy to remove | Yes |
| Hand tearability | No |
| Converting suitability | Yes, suitable for die-cutting and automation |
| Storage | 12 months (spools, under recommended storage) |
