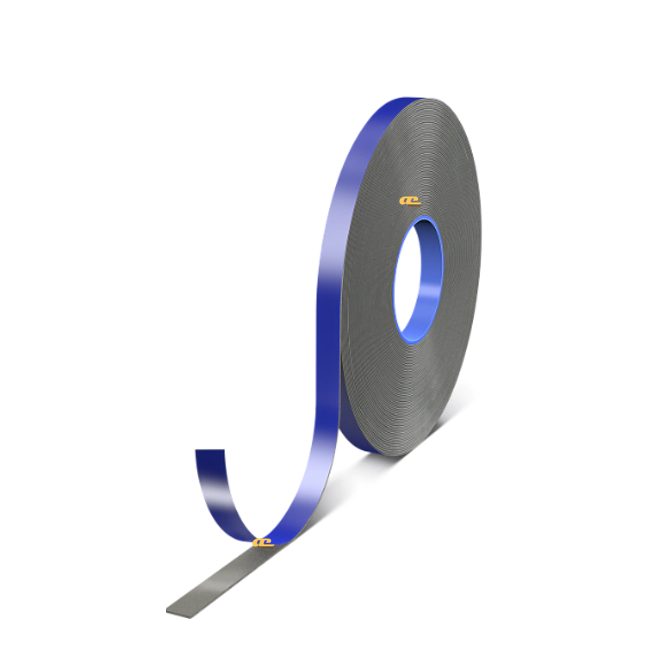

• Item Name: tesa® 77711
• Manufacturer: tesa SE
• Technologies: LSE adhesive, viscoelastic acrylic foam, primerless bonding
• Color: Grey
• Backing material: Acrylic foam
• Type of adhesive: LSE acrylic
• Package Size: Contact to Techniq VN for details
• Shelf Life: Contact to Techniq VN for details
tesa® ACXplus 77711 is a 1.1 mm double-sided acrylic foam tape designed for mounting exterior automotive parts. It features an asymmetrical double-layer structure with a high-performance LSE adhesive, allowing secure primerless bonding to low surface energy plastics such as PP and PP/EPDM, as well as medium surface energy substrates like ABS. The tape provides excellent immediate tack, robust long-term stability, and superior resistance against humidity, UV, and temperature changes.
Mounting of body side moldings and decorative trims
Emblem attachment
Spoilers and aerodynamic components
Antennas
Pillar appliqués
| Property | Value |
|---|---|
| Backing material | Acrylic foam |
| Adhesive type | LSE adhesive |
| Liner | PE, royal blue HDPE film |
| Total thickness | 1100 µm (also available in 0.8 mm and 1.5 mm) |
| Colour | Grey (liner: blue) |
| UV resistance | Good |
| Humidity resistance | Very good |
| Static shear resistance at 90°C | Very good |
| Temperature range | -40 °C to +80 °C (load dependent) |
| Adhesion ABS (initial/3 days) | 23–28 N/cm |
| Adhesion PP (initial/3 days) | 24–30 N/cm |
| Adhesion steel (initial/3 days) | 25–31 N/cm |
| Dynamic load tests (L-jig, T-block) | Good to very good |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
