• Item Name: THERM-A-GAP™ GEL 45
• Manufacturer: Parker Chomerics (Parker Hannifin)
• Technologies: Fully cured, one-component dispensable silicone thermal gel
• Color: Black
• Cure Type: No secondary curing required

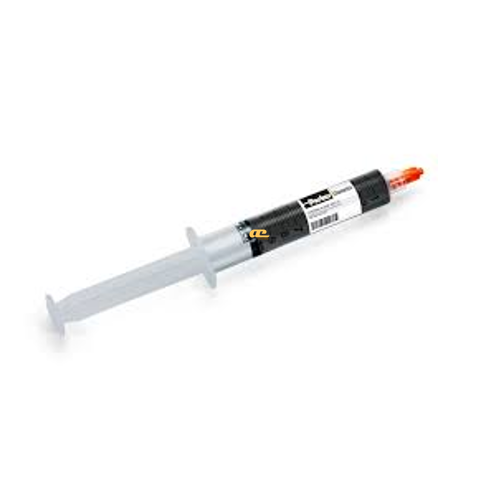

• Package Size: 10cc syringe, 30cc cartridge, 180cc cartridge, 300cc cartridge, 1-gallon pail, 5-gallon pail
• Shelf Life: 18 months
Parker Chomerics THERM-A-GAP™ GEL 45 is a fully cured, silicone-based, one-component dispensable thermal interface gel with a thermal conductivity of 4.5 W/m-K. Engineered for high-performance heat transfer, it is optimized for automated dispensing, rework, and field repair. Its paste-like consistency allows precise placement and controlled dispensing, while requiring very low compressive force to protect delicate components from stress. With high flow rate (55 g/min), low thermal impedance, and room-temperature storage, GEL 45 is well suited for high-volume manufacturing environments across multiple industries.
Telecommunications equipment.
Consumer electronics.
Computing components (CPUs, GPUs, memory).
Power electronics and modules.
Energy storage devices.
Automotive control units and sensors.
| Property | Value | Notes / Test Method |
|---|---|---|
| Color | Black | Visual |
| Flow Rate | 55 g/min | 30cc syringe, 0.100” orifice, 90 psi |
| Specific Gravity | 3.1 | ASTM D792 |
| Min. Bondline Thickness | 0.0035 in (0.089 mm) | Chomerics |
| Thermal Conductivity | 4.5 W/m-K | ASTM D5470 |
| Heat Capacity | 1 J/g-K | ASTM E1269 |
| CTE | 150 ppm/K | ASTM E831 |
| Operating Temp. Range | -67 to 392°F (-55 to 200°C) | Chomerics |
| Dielectric Strength | 200 Vac/mil (8.0 kVac/mm) | ASTM D149 |
| Volume Resistivity | 1×10¹⁴ ohm-cm | ASTM D257 |
| Dielectric Constant | 9.0 @ 1,000 kHz, 0.76 mm | ASTM D150 |
| Dissipation Factor | 0.040 @ 1,000 kHz, 0.76 mm | Chomerics |
| Flammability | UL94 V-0 | UL Certification |
| Outgassing | 0.23% TML / 0.06% CVCM | ASTM E595 |
| Shelf Life | 18 months | 50–90°F (10–32°C), 50% RH |
| RoHS | Compliant | Certified |
Packaging Options: 10cc syringes, 30cc cartridges, 180cc cartridges, 300cc aluminum cartridge, 1-gal and 5-gal pails.
