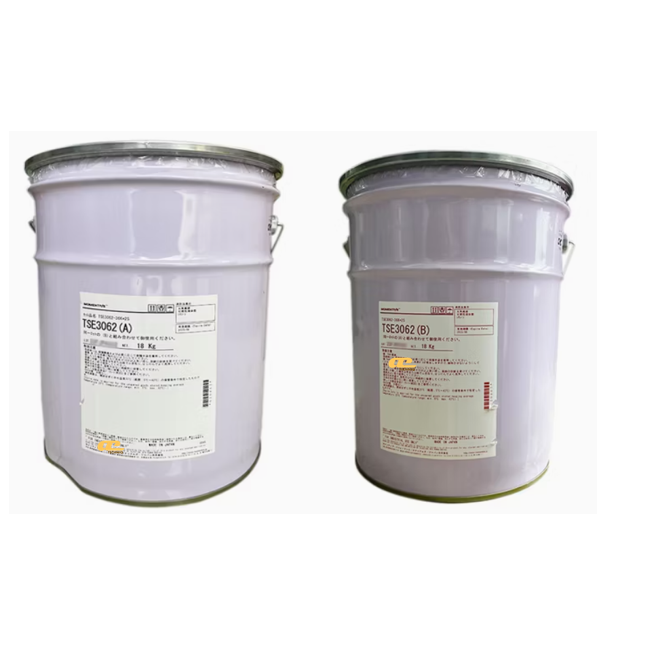

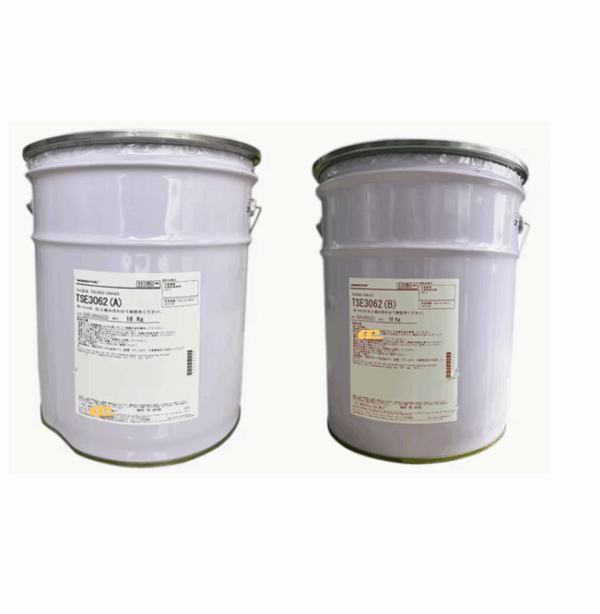

Item Name: TSE3062
Manufacturer: Momentive Performance Materials
Technologies: Two-component silicone gel
Color: Transparent
Cure Type: Room temperature, heat-accelerated option
Package Size: 2 kg and 36 kg kits
Shelf Life: 4 months
TSE3062 is a two-component, low-viscosity silicone gel designed for electronic potting applications. It cures at room temperature into a soft, tacky gel with the addition of the curing agent, and cure can be accelerated with heat. Its soft, cushioning nature protects electronic assemblies from humidity, mechanical shock, and vibration. The product is non-corrosive, produces no reactive by-products, and offers excellent electrical properties, making it ideal for sensitive electronics requiring insulation and mechanical protection.
Electrical and electronic potting, including hybrid ICs and power modules.
Potting of high-voltage components.
Protective encapsulation of assemblies exposed to vibration or mechanical stress.
| Property | TSE3062 A | TSE3062 B | After Mixing / Cured (0.5 h @ 70°C) |
|---|---|---|---|
| Appearance | Transparent | Transparent | Gel |
| Viscosity (Pa·s, 23°C) | 1.0 | 1.0 | 1.0 |
| Mix Ratio by Weight | – | – | 1:1 |
| Work Life (23°C, h) | – | – | 1 |
| Density (g/cm³) | – | – | 0.97 |
| Penetration | – | – | 55 |
| Volume Resistivity (Ω·cm) | – | – | 1.0 × 10¹⁵ |
| Dielectric Strength (kV/mm) | – | – | 18 |
| Dielectric Constant (60Hz) | – | – | 2.7 |
| Dielectric Loss (60Hz) | – | – | 0.001 |
| Volume Expansion (1/K) | – | – | 1 × 10⁻³ |
| Thermal Conductivity (W/m·K) | – | – | 0.17 |
