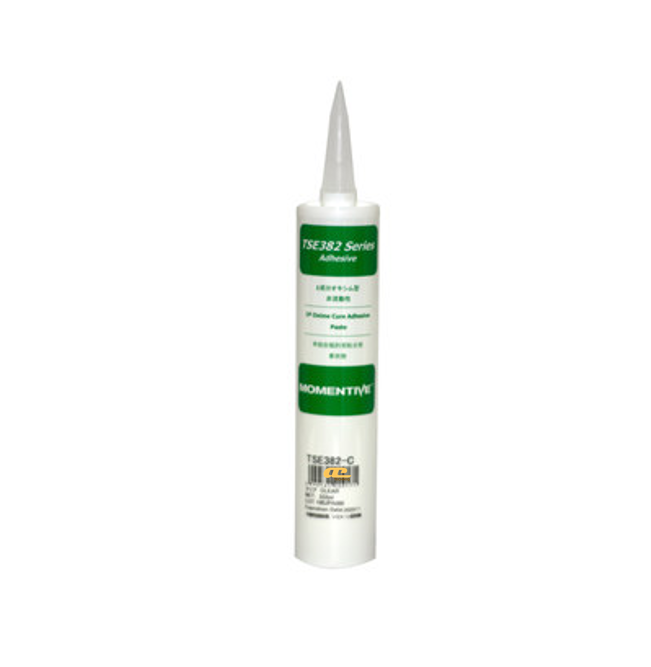

Item Name: TSE382
Manufacturer: Momentive Performance Materials
Technologies: One-component, oxime-curing silicone adhesive sealant
Color: Translucent, black, gray, white
Cure Type: Room temperature, moisture cure
Package Size: 100 g tubes, 180 g tubes, 333 ml cartridges, 18 kg pails
Shelf Life: 3 months
TSE382 is a one-component, oxime-curing silicone adhesive sealant that cures at room temperature with atmospheric moisture to form an elastomeric rubber. It bonds to metals, plastics, ceramics, and glass without a primer. The product offers excellent high- and low-temperature resistance (-55°C to 200°C), dielectric properties, weatherability, and chemical resistance. Available in translucent, black, gray, and white, TSE382 is UL-recognized and provides a reliable, neutral-cure solution for sealing, insulation, and adhesive applications.
Waterproof and air-tight sealing for electrical and communication equipment.
Oil leakage preventive sealing for automotive engine parts.
General adhesive for metals, glass, and plastics.
Potting or sealing sensitive electronic components.
| Property | Uncured | Cured (7 days @ 23°C / 50% RH) |
|---|---|---|
| Appearance | Non-flowable paste | Elastic rubber |
| Tack-free Time (min, 23°C) | 10 | – |
| Specific Gravity (g/cm³) | – | 1.04 |
| Hardness (Shore A) | – | 28 |
| Tensile Strength (MPa) | – | 1.9 |
| Elongation (%) | – | 380 |
| Thermal Conductivity (W/m·K) | – | 0.18 |
| Adhesive Strength (AL/AL, MPa) | – | 1.7 |
| Cohesive Failure (%) | – | 100 |
| Volume Resistivity (Ω·cm) | – | 1 × 10¹⁵ |
| Dielectric Strength (kV/mm) | – | 23 |
| Dielectric Constant (60Hz) | – | 2.9 |
| Dielectric Loss (60Hz) | – | 0.004 |
