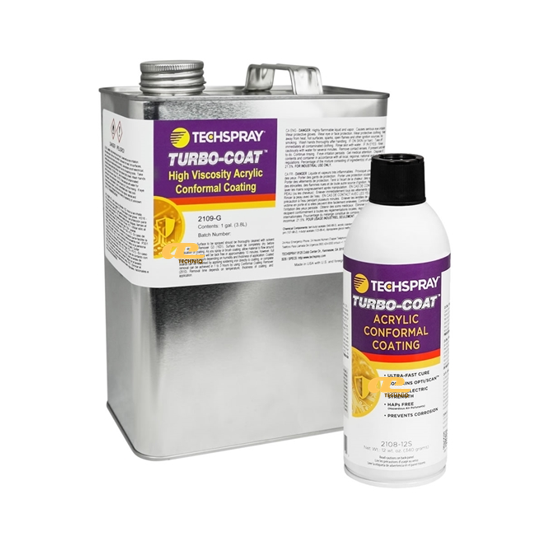

Item Name: Turbo-Coat Acrylic Conformal Coating
Manufacturer: Techspray
Technologies: Acrylic polymer
Color: Clear, colorless
Cure Type: Ambient and accelerated cure (3 min tack-free, 15 h ambient, 25 min @ 65°C)
Package Size: 12 oz. Aerosol, 1 Pint, 1 Gallon, 5 Gallon Liquid
Shelf Life: 2 years
1. Product Overview
Turbo-Coat Acrylic Conformal Coating (Product #2108) is a fast-drying, low-toxicity acrylic coating engineered to accelerate PCB assembly throughput. It dries tack-free in just 3 minutes and can reach full cure within 10 minutes at elevated temperatures, reducing production bottlenecks without requiring additional capital equipment. HAP-free and MEK, Toluene, and Xylene-free, the coating provides a crystal-clear, glossy finish and features a UV indicator for quality inspection. The product meets IPC-CC-830 standards and UL94 V-0 flammability rating, supporting both high-performance production and easy rework.
2. Applications
Electronic assemblies for Automotive, Aviation, Consumer Electronics, Appliances, Industrial Meters & Control
Spray, dip, or brush application techniques
Rework and repair using Conformal Coating Remover or solder iron burn-through
QC inspection with UV (black light) to verify coverage and thickness
3. Typical Properties
As Supplied
| Property | Value |
|---|---|
| Physical State | Liquid |
| Odor | Characteristic |
| Color | Clear, colorless |
| Percent Volatile | 93.4% at 25ºC |
| Vapor Pressure | 14.52 mmHg @ 20ºC |
| Vapor Density | >1 (Air=1) |
| Boiling Point | 39.4ºC (103ºF) |
| Flashpoint | 1.49ºC (35ºF) |
| Solubility in Water | Negligible |
| Evaporation Rate | >1 (n-Butyl Acetate=1) |
| Density | 0.834 g/cm³ @ 25ºC |
| Viscosity | 10–20 cP @ 25ºC |
| VOC | 33.24% by weight |
| Shelf Life | 2 years |
| Chemical Components | Acrylic polymer, n-Propyl acetate, Acetone, n-Heptane |
Cured Properties
| Property | Value |
|---|---|
| Dielectric Strength | 1000 V |
| Adhesion | 5B (ASTM D-3359) |
| Film Hardness | 2B (ASTM D-3363) |
| Film Thickness (1 dip) | 1 mil (0.001”) |
| Flammability | UL94 V-0 |
| IPC-CC-830 Compliance | Pass (Appearance, Fluorescence, Flammability, Fungus Resistance, Flexibility, Dielectric Withstand, Moisture & Insulation Resistance, Thermal Shock, Temperature Humidity Ageing) |
Chemical compatibility testing confirms resistance or dissolution with multiple industrial and household chemicals, ensuring reliable performance in diverse PCB assembly environments.
