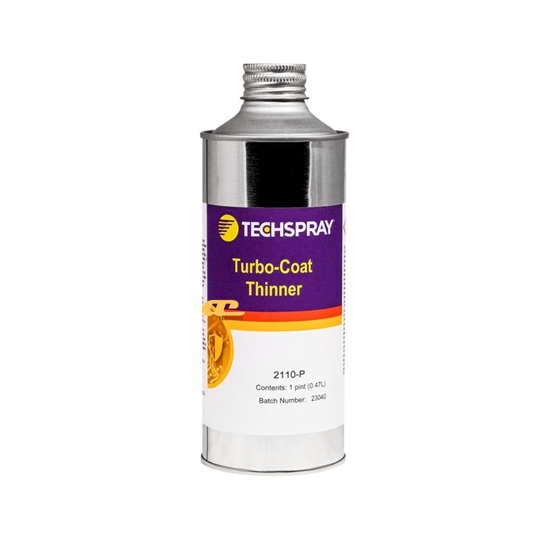

• Item Name: Turbo-Coat Thinner
• Manufacturer: Techspray® / ITW Contamination Control BV
• Technologies: HAP-free, MEK/Toluene/Xylene-free, low-toxicity, multi-use as thinner, stripper, and nozzle cleaner
• Color / Size: Clear, colorless liquid; available in 1 pint, 1 gallon, 5 gallons
• Package Size: 2110-P (1 Pint), 2110-G (1 Gallon), 2110-5G (5 Gallon)
• Shelf Life: 5 years unopened, 2 years opened
1. Product Overview
Turbo-Coat Thinner (Product #2110) is a low-toxicity, HAP-free solvent designed to reduce the viscosity of Turbo-Coat coatings for optimal processing. Free from common hazardous solvents such as Toluene, Xylene, and MEK, it provides a safer and more user-friendly option for coating applications. It can also function as a stripper and nozzle cleaner. The product is available in pint, gallon, and 5-gallon liquid containers and has a shelf life of 5 years unopened and 2 years once opened.
2. Applications
Viscosity adjustment for Turbo-Coat and Turbo-Coat HV coatings
Stripping of coatings
Cleaning of spray nozzles and equipment
3. Typical Properties
| Property | Value |
|---|---|
| Physical State | Liquid |
| Odor | Sweet ester |
| Color | Clear, colorless |
| Percent Volatile | 100% at 25ºC |
| Vapor Pressure | 9.606 mmHg @ 20ºC |
| Vapor Density | >1 (Air=1) |
| Boiling Point | 251ºF (121.7ºC) |
| Flashpoint | 86ºF (30ºC) |
| Solubility in Water | ~48% |
| Evaporation Rate | >1 (n-Butyl Acetate=1) |
| Density | 0.9 g/cm³ @ 25ºC |
| VOC | 100% by weight |
| Shelf Life | 5 years unopened; 2 years open |
