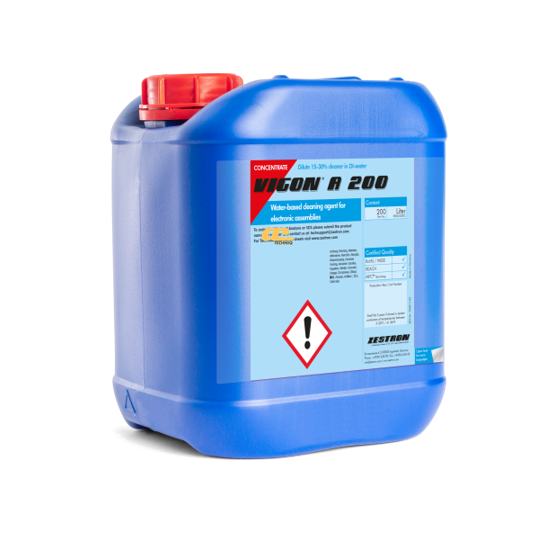

Item Name: VIGON® A 200
Manufacturer: ZESTRON
Soil/Flux Compatibility: All flux types on PCBAs, ceramic hybrids, power modules, leadframes
Chemistry/Key flags: Water-based, alkaline, MPC® Technology, pH 10.9, biodegradable, halogen-free, RoHS & WEEE compliant
Process/Equipment: High/medium pressure spray inline & batch, dip tank, DI-water rinse, hot air/circulating air drying, 40–60°C
Package Size: 1 L, 5 L, 25 L, 200 L
Shelf Life: 5 years
1. Product Overview
VIGON® A 200 is a water-based, alkaline defluxing agent formulated for high- and medium-pressure spray equipment, suitable for inline and batch cleaning processes. Utilizing MPC® Technology, it effectively removes flux residues from electronic assemblies, ceramic hybrids, power modules, and leadframes. It ensures exceptional cleanliness for subsequent wire bonding and coating processes while providing excellent material compatibility and low environmental impact.
2. Applications
Spray-in-air inline and batch cleaning of PCBAs, Power Modules, Leadframes, and Ceramic Hybrids.
Effective for low standoff components, ensuring no residual flux remains.
Supports downstream processes like wire bonding, coating, and assembly without affecting sensitive components.
Compatible with filtration, process monitoring, and regeneration systems (ZESTRON® EYE, Bath Analyzer 10, Adsorber HM1) to maintain stable operation.
3. Typical Properties – Specifications
Density: 0.99 g/ccm at 20°C
Surface tension: 28.7 mN/m at 25°C
Boiling point: 100–212°C
Flash point: None until boiling
pH value: 10.9 (10 g/l H₂O)
Vapor pressure: ~20 mbar at 20°C
Cleaning temperature: 40–60°C
Solubility: Soluble in water
Application concentration: 15–30% (diluted in DI-water)
HMIS Rating: 0–0–0 (Health–Flammability–Reactivity)
4. Product Features & Compliance
RoHS, WEEE, and REACH compliant; suitable for lead-free solder applications.
Water-based, biodegradable, halogen-free formulation with low odor.
Designed for extended bath life and reduced operational cost.
Storage: 5–30°C, 1, 5, 25, and 200-liter containers, shelf life 5 years.
Recommended process support: filtration, automated/manual concentration monitoring, and heavy metal adsorption for regeneration.
