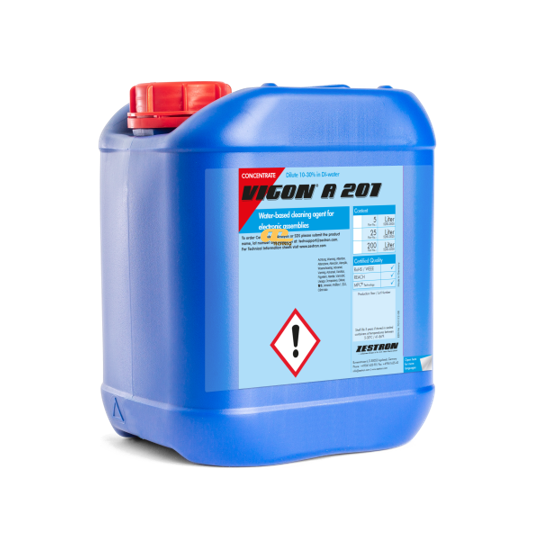

Item Name: VIGON® A 201
Manufacturer: ZESTRON
Soil/Flux Compatibility: Leaded and lead-free No-Clean solder pastes, tacky fluxes on Flip Chips, CMOS, Power LEDs
Chemistry/Key flags: Water-based, alkaline, MPC® Technology, pH 10.5, biodegradable, halogen-free, RoHS & WEEE compliant
Process/Equipment: Spray-in-air inline & batch, DI-water rinse, hot air or circulating air drying, 40–60°C
Package Size: 1 L, 5 L, 25 L, 200 L
Shelf Life: 5 years
1. Product Overview
VIGON® A 201 is a water-based, alkaline defluxing agent specifically formulated for spray-in-air processes. It delivers exceptional cleaning performance under low standoff components, including Micro BGAs, Flip Chips, and 01005 components. The MPC®-based formulation efficiently removes flux residues from leaded and lead-free No-Clean solder pastes, leaving shiny solder joints without additional additives. VIGON® A 201 ensures high material compatibility, enhances wire bonding quality, improves optical performance in Power LEDs, and extends bath life in closed-loop systems.
2. Applications
Spray-in-air inline and batch cleaning of PCBAs, Flip Chips, CMOS, and Power LEDs.
Effective removal of flux residues from leaded and lead-free No-Clean solder pastes.
Cleaning of capillary spaces and low standoff components, ensuring void-free underfills.
Optimizes die attach, wire bonding, and light conversion efficiency in Power LEDs.
Can be used with process monitoring and regeneration systems (ZESTRON® EYE, Bath Analyzer 10, Adsorber HM1) for stable operation.
3. Typical Properties – Specifications
Density: 1.00 g/ccm at 20°C
Surface tension: 28.7 mN/m at 25°C
Boiling point: >100°C
Flash point: None until boiling
pH value: 10.5 (10 g/l H₂O)
Vapor pressure: ~20 mbar at 20°C
Cleaning temperature: 40–60°C
Solubility: Soluble in water
Application concentration: Inline 10–20%, Batch 20–30% (diluted in DI-water)
HMIS Rating: 1–0–0 (Health–Flammability–Reactivity)
Additional features include RoHS, WEEE, and REACH compliance, biodegradable and halogen-free formulation, and a minimum shelf life of 5 years. The product is available in 1, 5, 25, and 200-liter containers, with filtration and process monitoring recommended to maintain consistent bath performance.
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
