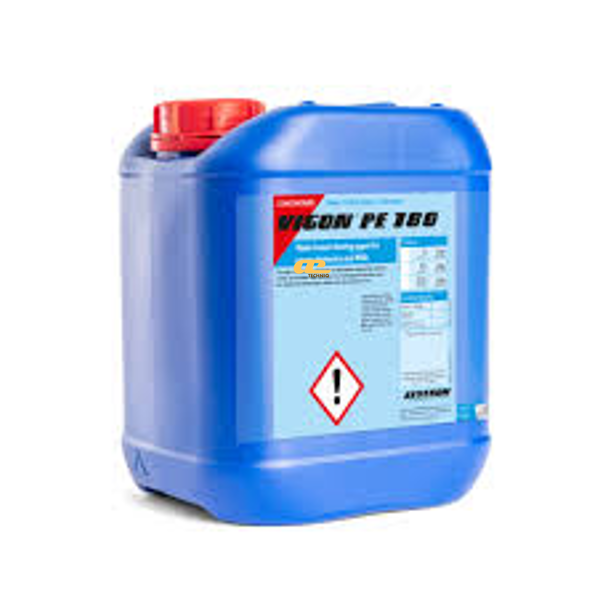

Item Name: VIGON® PE 180
Manufacturer: ZESTRON
Soil/Flux Compatibility: Flux residues on Power Electronics, PCBAs, leadframes, discrete devices, power modules, power LEDs
Chemistry/Key flags: Water-based, pH-neutral, MPC® Technology, biodegradable, halogen-free, RoHS & WEEE compliant
Process/Equipment: Spray-in-air equipment, inline & batch, DI-water rinse, hot air or circulating air drying, 40–70°C
Package Size: 1 L, 5 L, 25 L, 200 L
Shelf Life: 5 years
1. Product Overview
VIGON® PE 180 is a water-based, pH-neutral defluxing agent formulated for Power Electronics and PCBAs, designed for use in spray-in-air equipment. It efficiently removes flux residues while maintaining excellent material compatibility, providing deoxidized copper surfaces for subsequent processes such as wire or adhesive bonding and molding. Its MPC® Technology ensures long bath life and reliable cleaning performance, and the formulation is safe, environmentally friendly, and free of flash points or foaming issues, allowing operation without explosion-proof measures.
2. Applications
Defluxing of Power Electronics, PCBAs, leadframes, discrete devices, power modules, and power LEDs.
Cleaning in spray-in-air equipment (inline and batch) and dip tanks with ultrasonic or semi-ultrasonic support.
Preparation of stainless, activated copper surfaces for subsequent wire bonding, molding, or adhesive bonding processes.
Suitable for lead-free solder pastes and various flux residues, reducing particle contamination.
3. Typical Properties – Specifications
Density: 0.99 g/ccm at 20°C
Surface tension: 29.2 mN/m at 25°C
Boiling point: >98°C
Flash point: None until boiling
pH value: Neutral (10 g/l H₂O)
Vapor pressure: ~20 mbar at 20°C
Cleaning temperature: 40–70°C
Solubility: Soluble in water
Application concentration: Inline 10–20%, Batch 15–25% (diluted in DI-water)
HMIS Rating: 1–0–0 (Health–Flammability–Reactivity)
Additional features include RoHS, WEEE, and REACH compliance, biodegradable and halogen-free formulation, and a minimum shelf life of 5 years. The product is available in 1, 5, 25, and 200-liter containers, with recommended filtration and process monitoring tools for stable bath performance.
