Item Name: VIGON® RC 101
Manufacturer: ZESTRON
Soil/Flux Compatibility: Baked-on fluxes, solder pastes, re-condensed fluxes, fumigation contamination, SMT or conductive adhesives
Chemistry/Key flags: Water-based, MPC® Technology, pH 10.8, biodegradable, halogen-free, RoHS & WEEE compliant
Process/Equipment: Manual spray, wiping, automated conveyor brushing, 20–50°C surfaces, reflow ovens, wave solder systems
Package Size: 1 L, 5 L, 25 L, 200 L
Shelf Life: 5 years
1. Product Overview

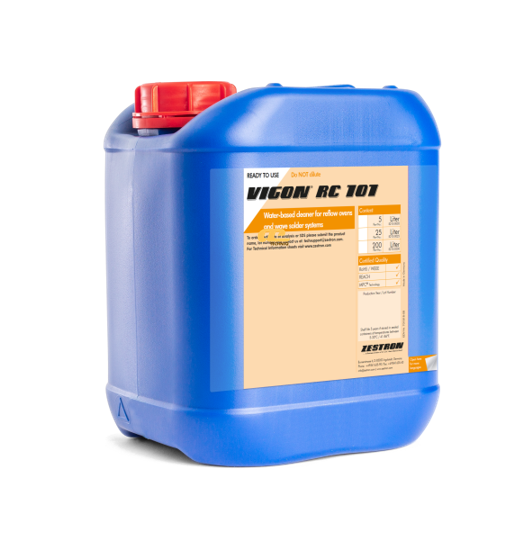

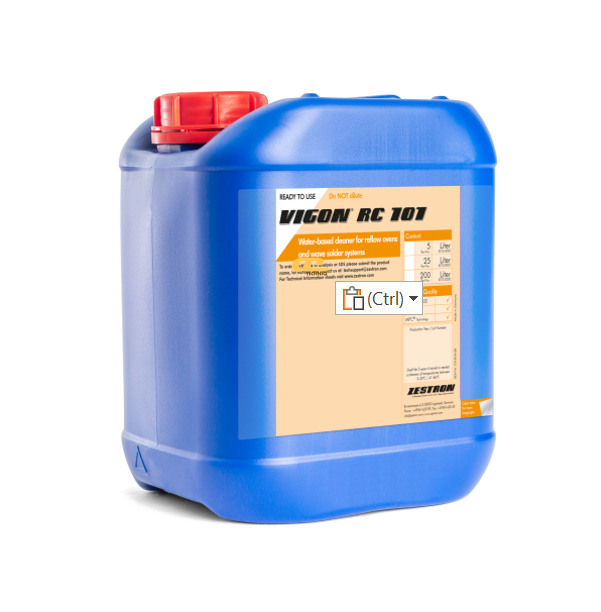

VIGON® RC 101 is a water-based cleaning medium formulated with MPC® Technology for the manual and automated cleaning of reflow ovens, wave solder systems, and related equipment. It effectively removes all types of baked-on flux residues, re-condensated fluxes, and emissions while ensuring excellent material compatibility with aluminum and epoxy surfaces. The mild formulation features no flash point, low odor, and eliminates harmful condensations on assemblies, providing a safe, efficient, and environmentally friendly cleaning solution.
2. Applications
Manual cleaning of reflow ovens and wave solder equipment: spray onto cold or warm surfaces, allow ~5 min contact, wipe, and air dry.
Automated cleaning of conveyor fingers in wave solder equipment using reservoir filling and automatic brushing.
Pre-cleaning of condensation traps and surfaces exposed to flux residues.
Suitable for baked-on fluxes, fumigation contamination, solder pastes, and SMT or conductive adhesives.
3. Typical Properties – Specifications
Density: 0.99 g/ccm at 20°C
Surface tension: 29.4 mN/m at 25°C
Boiling point: >99–212°C
Flash point: None
pH value: 10.8 (10 g/l H₂O)
Vapor pressure: ~11 mbar at 20°C
Cleaning temperature: 20–50°C
Solubility: Soluble in water
Application concentration: Ready-to-use pure
HMIS Rating: 0–0–0 (Health–Flammability–Reactivity)
Additional features include RoHS, WEEE, and REACH compliance, biodegradable and halogen-free formulation, non-hazardous material classification, and a minimum shelf life of 5 years. Available in 1, 5, 25, and 200-liter containers.
