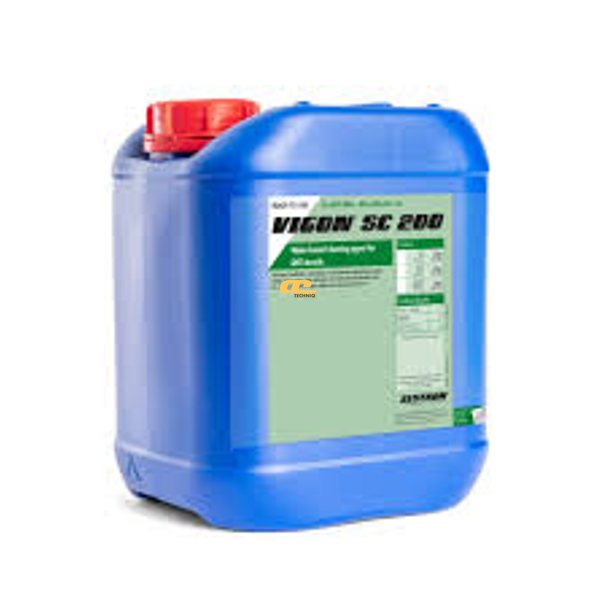

Item Name: VIGON® SC 200
Manufacturer: ZESTRON
Soil/Flux Compatibility: Solder pastes, SMT adhesives, conductive adhesives, fluxes
Chemistry/Key flags: Water-based, MPC® Technology, pH-neutral, biodegradable, halogen-free, RoHS & WEEE compliant
Process/Equipment: Spray-in-air systems, ultrasonic dip tanks, SMT printers, closed-loop systems, ambient temperature cleaning
Package Size: 1 L, 5 L, 25 L, 200 L
Shelf Life: 5 years
1. Product Overview
VIGON® SC 200 is a high-performance, water-based stencil and misprint cleaner designed for SMT (Surface Mount Technology) applications. Utilizing MPC® Technology, it efficiently removes solder pastes and SMT adhesives in a single process while maintaining excellent material compatibility with stencils. The cleaner is suitable for use in spray-in-air, ultrasonic, and SMT printer systems and is formulated for ambient temperature operations. Its water-based composition eliminates flash points and explosion risks, offering safe, environmentally friendly usage without the need for specialized protective measures.
2. Applications
Cleaning SMT stencils, including underside wiping in printers
Removal of misprinted solder paste from single- and double-sided PCBAs
Use in spray-in-air systems, ultrasonic dip tanks, and SMT printers
Suitable for thick film pastes, conductive pastes, and a variety of SMT adhesives
3. Typical Properties – Specifications
Density: 0.99 g/ccm at 20°C
Surface tension: 29.7 mN/m at 25°C
Boiling range: 95–212°C
Flash point: None until boiling
pH value: Neutral (10 g/l H2O)
Vapor pressure: 18.1 mbar at 20°C
Cleaning temperature: 20–50°C
Solubility: Soluble in water
Application concentration: Ready-to-use or 25% concentrate
HMIS Rating: 0–0–0 (Health–Flammability–Reactivity)
Additional features include RoHS, WEEE, and REACH compliance, biodegradable formulation, long bath life in closed-loop systems, and compatibility with lead-free solder pastes. The product is available in multiple container sizes (1, 5, 25, 200 liters) and has a minimum shelf life of 5 years in factory-sealed containers.
