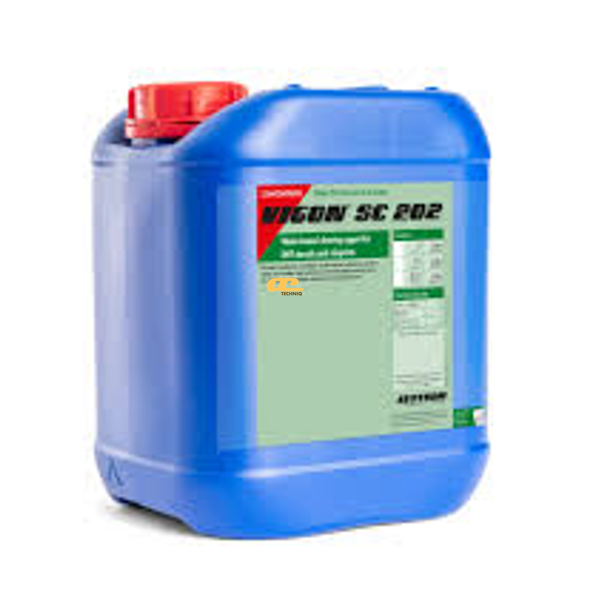

Item Name: VIGON® SC 202
Manufacturer: ZESTRON
Soil/Flux Compatibility: Solder Pastes, SMT Adhesives, Fluxes, Double-Sided Misprints, Lead-Free Solder Pastes
Chemistry/Key flags: Water-based, MPC® Technology, surfactant-free, halogen-free, biodegradable, residue-free, non-foaming, VOC < 20%, no flash point
Process/Equipment: Spray-in-air, ultrasonic cleaning, hot/compressed/circulating air drying
Package Size: 1 L, 5 L, 25 L, 200 L
Shelf Life: 5 years
1. Product Overview
VIGON® SC 202 is a water-based stencil and misprint cleaner developed with MPC® Technology to reliably remove solder pastes, SMT adhesives, and fluxes. Specially optimized for double-sided misprints with one side already soldered, it ensures effective cleaning while maintaining high material compatibility. The solution is surfactant-free, residue-free, biodegradable, and non-hazardous, providing safe handling and long bath life with reduced cleaning costs.
2. Applications
Stencil cleaning in spray-in-air and ultrasonic systems.
Removal of solder pastes, SMT adhesives, and flux residues.
Cleaning of double-sided misprinted boards with one side soldered.
Suitable for both leaded and lead-free solder pastes.
Compatible with IPC-7526 industry standards for stencil and misprint cleaning.
3. Typical Properties – Specifications
Density (20°C): 0.99 g/cm³
Surface tension (25°C): 28.7 mN/m
Boiling range: 95 – 212°C / 203 – 414°F
Flash point: None until boiling
pH (10 g/l H₂O): 9.0
Vapor pressure (20°C): 18.1 mbar
Solubility in water: Soluble
Cleaning temperature: 20 – 50°C / 68 – 122°F
Application concentration (ready-to-use): Pure
Application concentration (concentrate): 25% (DI water recommended)
HMIS rating: Health 0 – Flammability 0 – Reactivity 0
Compliance: RoHS 1, 2, 3, WEEE, REACH; free of SIN & SVHC critical substances
Technology: MPC® Technology for long bath life in closed loop systems
Packaging: 1 L, 5 L, 25 L, 200 L (concentrate or ready-to-use)
Shelf life: Minimum 5 years in sealed containers at 5 – 30°C
