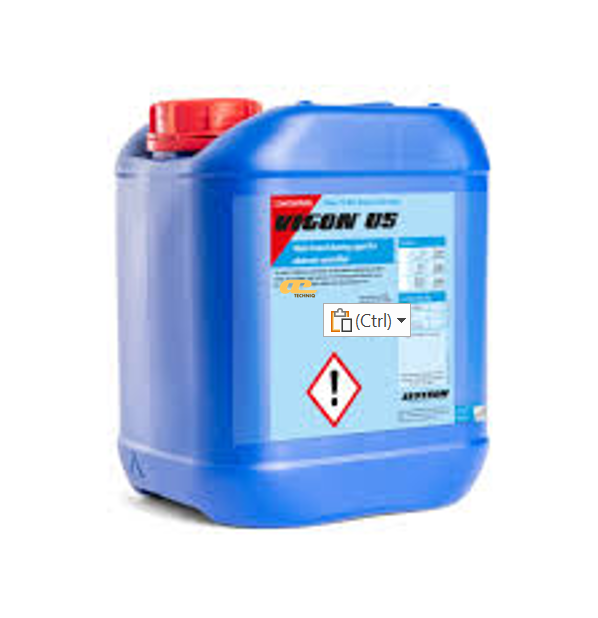

Item Name: VIGON® US
Manufacturer: ZESTRON
Soil/Flux Compatibility: All flux types on PCBAs, Flip Chips, CMOS packages
Chemistry/Key flags: Water-based, alkaline, MPC® Technology, pH 11.3, biodegradable, halogen-free, RoHS & WEEE compliant
Process/Equipment: Dip tank, ultrasonic, spray-under-immersion, centrifugal, DI-water rinse, hot/circulating air drying, 40–60°C
Package Size: 1 L, 5 L, 25 L, 200 L
Shelf Life: 5 years
1. Product Overview
VIGON® US is a water-based, alkaline defluxing agent specifically formulated for use in ultrasonic, spray-under-immersion, and centrifugal cleaning equipment. Utilizing MPC® Technology, it efficiently removes all types of flux residues from electronic assemblies, including PCBs, flip chip packages, and CMOS devices. Distinguished by its low ionic contamination, absence of flash point, and extended bath life, VIGON® US ensures reliable, residue-free cleaning and is environmentally compliant, biodegradable, and halogen-free.
2. Applications
Cleaning of PCBAs, including flip chips and CMOS assemblies, in dip tank processes.
Effective in capillary and low standoff areas.
Reduces particle contamination, improving image resolution for CMOS image sensors.
Suitable for lead-free solder paste removal.
Can be applied with ZESTRON-supported ultrasonic, spray-under-immersion, or centrifugal cleaning systems.
3. Typical Properties – Specifications
Density: 0.99 g/ccm at 20°C
Surface tension: 30.8 mN/m at 25°C
Boiling point: 165–212°C
Flash point: None until boiling
pH: 11.3 (10 g/L H₂O)
Vapor pressure: ~19 mbar at 20°C
Cleaning temperature: 40–60°C
Solubility: Soluble in water
Application concentration: 15–30% (diluted in DI-water)
HMIS Rating: 0-0-0
Compliance: RoHS, WEEE, Reach
Standards met: IPC-A-610, J-STD-001, IPC-5704, IPC-Hdbk-65B
Additional Features
Long bath life and low maintenance via MPC® Technology.
Available in 1, 5, 25, and 200 L concentrates.
Filtration recommended for optimal performance.
Process optimization tools available, such as ZESTRON® EYE and Bath Analyzer 10.
