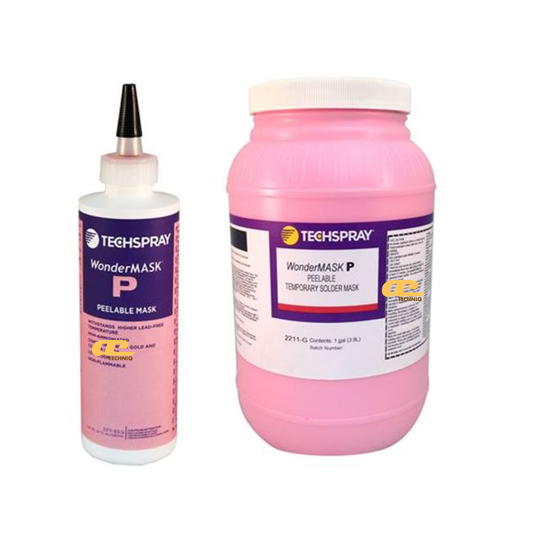

• Item Name: WonderMASK P Peelable Solder Mask
• Manufacturer: Techspray® / ITW Contamination Control BV
• Technologies: Peelable, synthetic acrylic latex, non-ammoniated, nonflammable, low odor, RoHS compliant
• Color: Pink (opaque) → Translucent red (cured)
• Cure Type: Ambient 1 hr; 30 min @ 65°C / 20 min @ 82°C
• Package Size: 8 oz., 1 gallon, 5 gallon, 54 gallon liquid
• Shelf Life: 2 years
WonderMASK P is a temporary, peelable solder mask made from a thixotropic synthetic acrylic latex. It is non-ammoniated, non-corrosive to copper, gold, and silver, and designed to withstand fluxing, wave soldering, and cleaning operations. When applied, it appears opaque pink and cures to a translucent red, providing a visible cure indicator. The mask is suitable for robotic, pneumatic, hand-applied, or template screening applications and is RoHS compliant.
Thru-hole masking to prevent soldering open holes during wave soldering
Conformal coating masking to protect connectors or components from coating
Temporary component adhesive for tacking components on double-sided PCBs
Before Use / Ready-to-Use
| Property | Value |
|---|---|
| Physical State | Liquid |
| Color | Pink (translucent red after cure) |
| Relative Density | 1 |
| Viscosity | 28,000–30,000 cps |
| Suggested Thickness | 20–30 mils |
| Thinner | DI Water |
| Shelf Life | 2 years |
After Application / Cured Mask
| Property | Value |
|---|---|
| Cure Time | 1 hr ambient; 30 min @65°C; 20 min @82°C |
| Removal | Peel-able |
| Application Methods | Template, hand, pneumatic, robotic |
| Thermal Resistance | Withstands lead-free soldering up to 640°F (343°C) |
| Safety / Environmental | Non-ammoniated, nonflammable, low odor |
