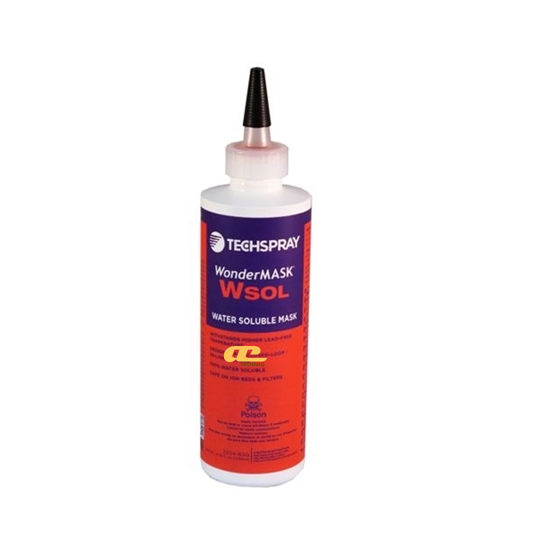

Item Name: Wondermask WSOL Washable Solder Mask
Manufacturer: Techspray
Technologies: Water-soluble temporary solder mask
Color: Pink red
Cure Type: Ambient or heat cure (30 min @ 65°C)
Package Size: 8 Ounce Liquid, 1 Gallon Liquid
Shelf Life: 2 years
1. Product Overview
WonderMASK WSOL Washable Solder Mask (Product #2204) is a water-soluble temporary solder mask designed for use in closed-loop PCB assembly systems. It provides reliable protection of components and through-holes during wave soldering and assembly processes. The mask is safe on ion beds and filters, non-corrosive, low-odor, and fully RoHS compliant. It cures quickly at moderate temperatures and can be easily removed with inline or batch water-based cleaning systems, making it ideal for high-throughput production.
2. Applications
Thru-hole masking to prevent soldering of open holes
Temporary adhesive to tack down components on double-sided PCBs
Protection during wave soldering, including lead-free processes
Any PCB assembly requiring temporary, water-removable masking
3. Typical Properties
| Property | Value |
|---|---|
| Physical State | Liquid |
| Color | Pink red |
| Odor | Alcohol-like |
| Viscosity | 11,500–15,500 cps |
| Suggested Coating Thickness | 5–30 mils |
| Flash Point | 55.4ºF (13ºC) |
| Flammable Limits | Lower 7.3%, Upper 36% |
| Cure Time | 30 min @ 65ºC (149ºF) |
| Removal | Soluble in water ≥ 49ºC |
| Shelf Life | 2 years |
| Thinner | Methanol |
| Application Method | Hand, pneumatic |
WonderMASK WSOL provides fast, reliable temporary masking that is easily removable and compatible with sensitive electronics, making it highly versatile for modern PCB manufacturing environments.
