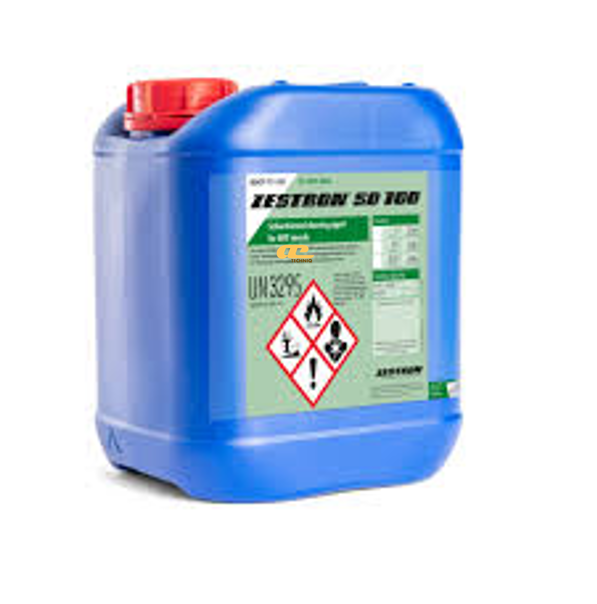

Item Name: ZESTRON® SD 100
Manufacturer: ZESTRON
Soil/Flux Compatibility: Solder pastes, conductive adhesives, flux residues, thick film pastes
Chemistry/Key flags: Solvent-based, pH-neutral, partially water-soluble, biodegradable, halogen-free, RoHS & WEEE compliant
Process/Equipment: Spray-in-air, SMT printer underside wiping, ambient or compressed air drying
Package Size: 1 L, 5 L, 25 L, 200 L
Shelf Life: 5 years
1. Product Overview
ZESTRON® SD 100 is a solvent-based cleaning agent designed to efficiently remove solder paste from SMT stencils in spray-in-air equipment. It exhibits excellent drying properties, enabling short process times, and is suitable for cleaning misprinted assemblies as well as manual stencil wiping. With ambient-temperature operation, low odor, and high bath loading capacity, it ensures long bath life and minimal maintenance costs. The product is halogen-free, biodegradable, and compliant with international environmental and safety standards.
2. Applications
Cleaning SMT stencils and misprinted assemblies in spray-in-air systems.
Manual stencil cleaning and underside wiping in SMT printers.
Effective for unsoldered solder pastes, conductive adhesives, fluxes, and thick-film pastes.
Approved by leading international stencil printer manufacturers.
Suitable for lead-free solder pastes.
3. Typical Properties – Specifications
Density: 0.76 g/ccm at 20°C
Surface tension: 21.7 mN/m at 25°C
Boiling range: 150–178°C
Flash point: 42°C
pH value: Neutral (10 g/L H₂O)
Vapor pressure: 4.6 mbar at 20°C
Cleaning temperature: Room temperature
Solubility: Partially soluble in water
Application concentration: Ready-to-use
HMIS Rating: 1–2–0
Compliance: RoHS, WEEE, Reach
Standards met: IPC-7526 (manual for cleaning stencils and misprinted boards)
Additional Features
Eliminates the need for water rinsing, reducing water streams and treatment processes.
Available in 1, 5, 25, and 200 L containers with a minimum shelf life of 5 years.
Filtration is recommended to extend bath life.
Process optimization and material compatibility guidelines available.
