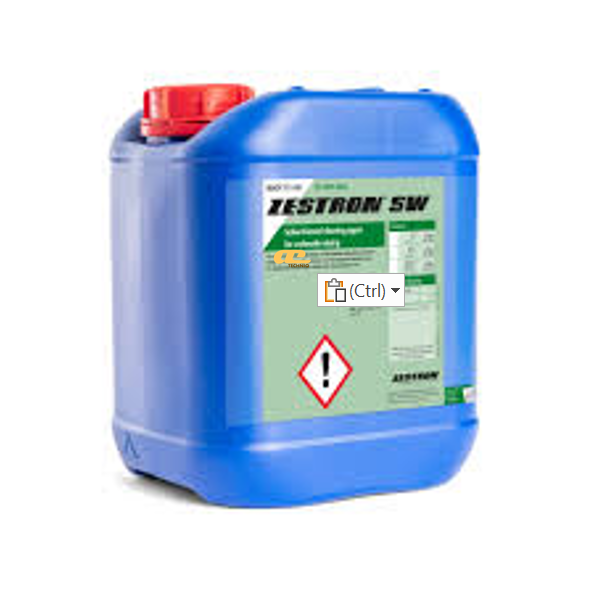

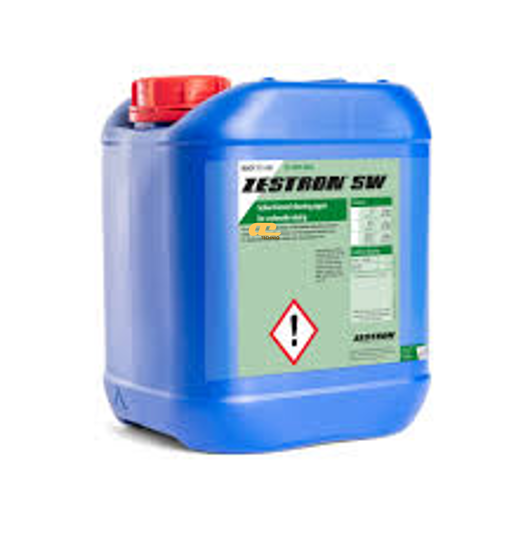

Item Name: ZESTRON® SW
Manufacturer: ZESTRON
Soil/Flux Compatibility: Solder pastes, conductive adhesives, flux residues, thick film pastes
Chemistry/Key flags: Solvent-based, pH-neutral, high flash point, biodegradable, halogen-free, RoHS & WEEE compliant
Process/Equipment: SMT printer underside wiping, dry fleece or vacuum drying, room temperature
Package Size: 1 L, 5 L, 25 L, 200 L
Shelf Life: 5 years
1. Product Overview
ZESTRON® SW is a solvent-based cleaning agent with a high flash point, specifically developed for stencil underside wiping in SMT printers without vacuum drying. Engineered in collaboration with leading SMT printer manufacturers, it delivers reproducible, residue-free cleaning results that enhance printing process reliability. The product is biodegradable, halogen-free, and environmentally compliant, offering improved operational safety compared to low flash-point solvents such as isopropanol.
2. Applications
Wiping the underside of SMT stencils in printers with or without vacuum drying.
Effective for unsoldered solder pastes, conductive adhesives, fluxes, and thick-film pastes.
Reduces solder balling and minimizes the number of cleaning cycles required.
Suitable for lead-free solder pastes.
Approved by leading international stencil printer manufacturers.
3. Typical Properties – Specifications
Density: 0.89 g/ccm at 20°C
Surface tension: 27.6 mN/m at 25°C
Boiling range: 100–171°C
Flash point: 67°C
pH value: Neutral (10 g/L H₂O)
Vapor pressure: ~3 mbar at 20°C
Cleaning temperature: Room temperature
Application concentration: Ready-to-use
HMIS Rating: 1–2–0
Compliance: RoHS, WEEE, Reach
Standards met: IPC-9202 (Material and Process Characterization/Qualification)
Additional Features
High flash point increases operational safety during stencil cleaning.
Available in 1, 5, 25, and 200 L ready-to-use containers with a shelf life of 5 years.
Material compatibility and process reliability guidelines provided.
Biodegradable and free of halogenated compounds; requires specific EU labeling.
