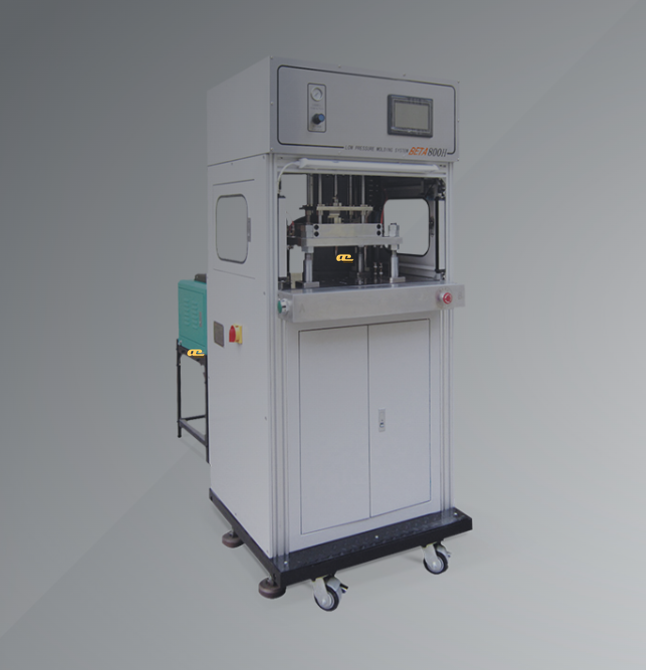

Item Numbers: BETA 800H (vertical injection, single-station, one external 7L melt tank, optional 5L)
Manufacturer: LPMS USA
Application: Low pressure molding for PCB and electronics encapsulation, waterproofing, strain relief, vibration and chemical protection
Dispensing Control: One external 7L melt tank, optional 5L, 3 temperature zones, 7.5” touchscreen interface
Size & Weight: 850 × 980 × 1900 mm, 980 lbs, max mold size 300 × 250 × 150 mm
Power & Certification: 220 VAC, 1 Phase, 50/60 Hz, 25A, air 90–110 PSI, 4 CFM, clamping 5T, safety: light curtains, E-stop, interlocks, LOTO
More information & technologies: Contact to Techniq VN for details. (Email: info@techniq.vn & Tel: +84 88 990 19 29)
1. Product Overview
The BETA 800H is a versatile low pressure molding machine that features vertical injection with a single-station system and an external melt tank. Designed for efficiency and ease of operation, it incorporates a 7.5-inch touchscreen interface for intuitive control. Its compact yet robust design ensures dependable performance, while safety is guaranteed through integrated light curtains, emergency stop functions, door interlocks, and lockout-tagout measures. With flexible external melt tank options and three thermal control zones, the BETA 800H offers consistent precision in molding operations, making it a cost-effective solution for encapsulating sensitive electronics.
2. Applications
The BETA 800H is ideal for encapsulating printed circuit boards, connectors, sensors, switches, and other delicate electronic assemblies. It provides enhanced waterproofing, chemical resistance, vibration dampening, and strain relief, effectively replacing traditional potting and conformal coating methods. Its environmentally friendly molding process ensures shorter cycle times, reduced material usage, and improved throughput, making it highly suitable for applications in automotive, consumer electronics, medical devices, and industrial equipment where lightweight, durable, and reliable protection is required.
3. Typical Properties – Specifications
| Parameter | Specification |
|---|---|
| Machine Dimensions | 850 × 980 × 1900 mm · 33.46 × 38.58 × 74.80 in · 980 lbs |
| Electricity | 220 VAC · 1 Phase · 50/60 Hz · 25 A |
| Air Input | 90 – 110 PSI |
| Air Volume | 4 CFM |
| Clamping Method | Air over oil cylinder |
| Clamping Force | 5 Tons |
| Clamping Stroke | 150 mm |
| Maximum Mold Size | 300 × 250 × 150 mm |
| Melt Tank Quantity / Volume | One external 7 L square (standard) · 5 L round (optional) |
| Temperature Control Zones | 3 |
| Nozzles | Single nozzle, single workstation |
| Safety Features | Light curtains · Emergency stop · Two-hand tie d |
