• Item Number: BVX-100 (variants: BVX-101, BVX-103, FG-BVX, FM-BVX, FP-BVX, BVX-ADT, BVX-IADT, BVX-BCK, BVX-CH01, BVX-TB01, BVX-NOZ1, AC-PC1, TB1101-W, 7100-0910)
• Manufacturer: Metcal (OK International)
• Application: Benchtop portable fume extraction for soldering, dust removal, solvents, and adhesives
• Filtration: HEPA 99.97% @ 0.3 microns, pre-filter, optional deep-bed gas filter
• Performance: Fan capacity 110 m³/h; flow 85 m³/h; static pressure 1250 Pa; noise < 55 dBA
• Size & Weight: 300 × 230 × 290 mm; 9 kg (20 lbs)
• Power & Certifications: 100–240 VAC, 85W, 50/60 Hz; UL, CSA, CE
1. Product Overview

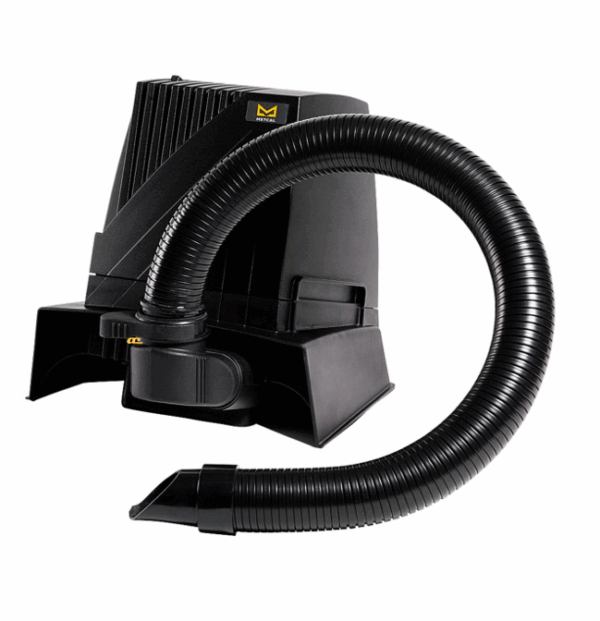

The BVX-100 Portable Fume Extraction System is a compact, bench-top solution engineered for single-user applications. It delivers immediate and efficient extraction of fumes, particles, and vapors without requiring external ducting or compressors. With a flow rate of 85 m³/h and powerful suction, the unit is designed to fit easily on or under any workbench. Its innovative adaptor enables quick transformation between a plenum and an arm configuration. Equipped with dual filtration options tailored for heavy soldering, light dust, or solvent-related processes, the system ensures versatility. A bi-colored LED indicator provides timely alerts when filters become clogged and need replacement.
2. Applications
The BVX-100 is ideally suited for electronics assembly, soldering, adhesive applications, and light solvent use in laboratories or production settings. Its portability and quiet operation make it highly practical for small-scale or single-operator environments requiring localized fume control.
3. Typical Properties – Specifications
Static pressure: 1250 Pa (5″ WC)
Fan capacity: 110 m³/h (65 cfm)
Flow rate (with filter): 85 m³/h (50 cfm)
Number of stations: 1
HEPA efficiency: 99.97% at 0.3 microns
Noise level: < 55 dBA
Dimensions: 300 × 230 × 290 mm (11.8″ × 9.1″ × 11.4″)
Weight: 9 kg (20 lbs)
Voltage: 100–240 VAC
Frequency: 50–60 Hz
Power: 85 W
Certifications: UL, CSA, CE
