• Item Number: BVX-250-KIT (variants: BVX-250, FP-BVX250, FM-BVX250, FG-BVX250, FN-BVX, BVX-NOZR, BVX-NOZC, BVX-NOZ1, BVX-ARM-K1, BVX-ARM, BVX-ARML, BVX-CH01, BVX-CH02, AC-BVX250-DUCT, AC-BVX250-OMNI, RPS-1, BVX-TB01)
• Manufacturer: Metcal (OK International)
• Application: Portable two-station extraction of soldering fumes, vapors, dust, and workplace contaminants
• Filtration: HEPA 13, 99.97% @ 0.3 microns; optional deep-bed carbon gas filter
• Performance: Airflow 297 m³/h; 2 × 75 m³/h stations; static pressure 1743 Pa; noise ~50 dBA
• Size & Weight: 268 × 400 × 320 mm; 12 lbs (5.5 kg)
• Power & Certifications: 100–240 VAC, 150W, 50/60 Hz; UL, CSA, CE, TUV, UKCA, KC, PSE, NOM, RoHS/REACH
1. Product Overview

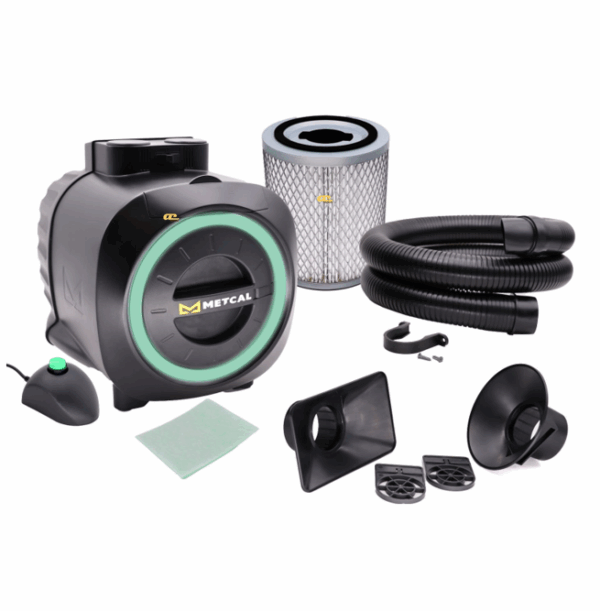

The BVX-250-KIT Fume Extraction System from Metcal is a portable, two-station solution for the efficient removal of workplace fumes, smoke, dust, and vapors. It offers three airflow modes with powerful suction, supported by an on/off “Soft-Start” feature and an ESD-safe housing. The compact, low-profile design fits easily under most benches, while the color LED status ring ensures clear operational visibility. Filters can be replaced without disconnecting hoses, and the removable 360° air diverter provides customizable exhaust direction. The system integrates seamlessly with Metcal CV and GT soldering units, enabling filter change notifications. With HEPA 13 filtration efficiency of 99.97% and an optional deep-bed gas filter, it ensures superior air purification.
2. Applications
The BVX-250-KIT is ideal for electronics assembly, soldering stations, laboratory operations, and industrial processes that generate hazardous airborne contaminants. Its portable and quiet design makes it suitable for dynamic work environments where operator safety and comfort are paramount.
3. Typical Properties – Specifications
Maximum airflow: 297 m³/h (175 cfm)
Dual flow rate: 2 × 75 m³/h (45 cfm)
Static pressure: 1743 Pa (7” WC)
Noise level: ~50 dBA (medium setting)
Voltage: 100–240 VAC, 1 phase
Frequency: 50/60 Hz
Power: 150 W
Dimensions: 268 × 400 × 320 mm (10.5” × 16” × 13”)
Weight: 5.5 kg (12 lbs)
Safety compliance: UL, CSA, CE, TUV
