Item Numbers: KAPPA 2000H (dual nozzle, horizontal injection, external melt tanks, independent workstations)
Manufacturer: LPMS USA
Application: High-volume low pressure molding for PCB and electronics encapsulation, waterproofing, vibration and strain relief
Dispensing Control: Two external 7L melt tanks (5L optional), six temperature zones, 7.5” touchscreen interface
Size & Weight: 950 × 1200 × 1900 mm, 1122 lbs, max mold size 290 × 270 × 150 mm
Power & Certification: 220 VAC, 1 Phase, 50/60 Hz, 50A, air input 90–110 PSI, safety features: light curtains, E-stop, interlocks
More information & technologies: Contact to Techniq VN for details. (Email: info@techniq.vn & Tel: +84 88 990 19 29)
1. Product Overview

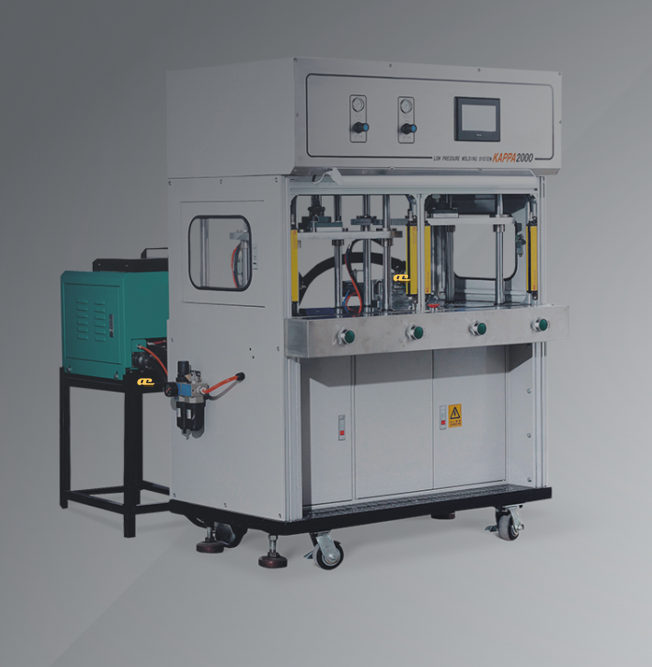

The KAPPA 2000H is a high-capacity low pressure molding machine designed with a dual nozzle horizontal injection system and external melt tanks for maximum flexibility. Its independent workstations and 7.5-inch touchscreen interface support streamlined operation, while optional additional melt tanks allow for rapid changeovers. With robust operator safety systems, including light curtains, emergency stop functions, interlocked doors, and lockout-tagout features, the KAPPA 2000H ensures secure, efficient, and precise production. Its advanced six-zone thermal control provides stable melt management, making it ideal for high-volume manufacturing of sensitive electronics.
2. Applications
The KAPPA 2000H is optimized for encapsulating printed circuit boards, connectors, sensors, batteries, and switches, providing superior waterproofing, vibration resistance, strain relief, and chemical protection. It is widely used in automotive electronics, industrial systems, consumer devices, and medical equipment. By replacing traditional potting and conformal coating, it reduces cycle times, enhances throughput, and delivers cost-effective, environmentally friendly solutions without compromising reliability or design flexibility.
3. Typical Properties – Specifications
| Parameter | Specification |
|---|---|
| Machine Dimensions | 950 × 1200 × 1900 mm · 1122 lbs (37.40 × 47.24 × 74.80 in) |
| Electricity | 220 VAC · 1 Phase · 50/60 Hz · 50A |
| Air Input | 90 – 110 PSI |
| Air Volume | 7 CFM |
| Clamping Method | Air Over Oil cylinder |
| Clamping Force | 5 Tons |
| Clamping Stroke | 150 mm |
| Maximum Mold Size | 290 × 270 × 150 mm |
| Melt Tank Options | Two External 7L Square (standard) · 5L Round (optional) |
| Temperature Control Zones | 6 |
| Safety Features | Light Curtains · Emergency Stop · Two-hand tie door interlocks · Lockout Tagout |
