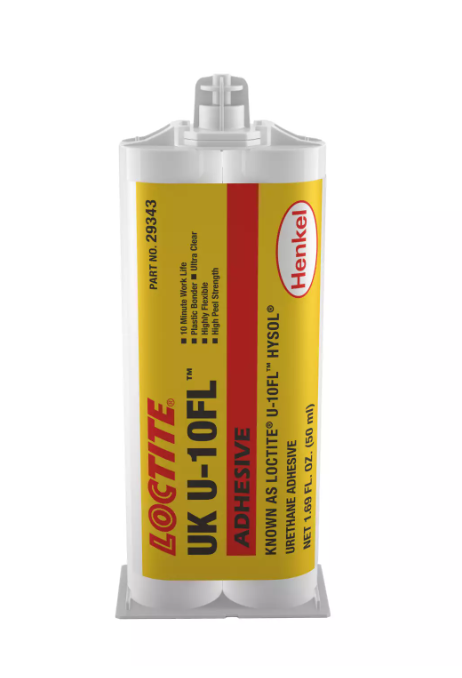

Item Name: LOCTITE® UK U-10FL (formerly Hysol® U-10FL)
Manufacturer: Henkel
Technologies: Two-component urethane adhesive
Color: Ultra-clear (after mixing)
Cure Type: Room temperature cure (heat accelerates curing)
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
LOCTITE® UK U-10FL is a two-component, low-viscosity urethane adhesive that cures at room temperature to form an ultra-clear and highly flexible bond line. It offers exceptional peel strength, non-yellowing transparency, and reliable dielectric performance. With a Shore D hardness of 45 and elongation of 170%, it combines clarity with toughness, making it suitable for demanding industrial use.
It is ideal for bonding polycarbonate, glass, metals, and various plastics. Typical uses include assemblies requiring a clear, flexible, and durable adhesive where resistance to impact, solvents, and environmental stress is critical. Its transparency makes it particularly suited for applications demanding non-yellowing aesthetics.
| Condition | Property | Value |
|---|---|---|
| Resin (Uncured) | Chemical Type | Polyisocyanate |
| Appearance | Light-colored liquid | |
| Specific Gravity | 1.10 (range 1.0–1.2) | |
| Viscosity @ 25 °C | 10,000 cP (range 5,000–15,000) | |
| Flash Point | >202 °C | |
| Hardener (Uncured) | Chemical Type | Polyol |
| Appearance | Light-colored liquid | |
| Specific Gravity | 1.00 (range 0.95–1.15) | |
| Viscosity @ 25 °C | 1,150 cP (range 600–2,000) | |
| Flash Point | >93 °C | |
| Mixture (Uncured) | Appearance | Ultra clear |
| Specific Gravity | 1.05 | |
| Mix Ratio (R:H) | 100:91 (by weight), 1:1 (by volume) | |
| Working Life | 10 min | |
| Tack-Free Time | 3–24 h | |
| Cured Material | Tensile Strength | 490 psi |
| Elongation | 170 % | |
| Hardness | Shore D 45 | |
| Dielectric Strength | 400 V/mil | |
| Glass Transition Temp. | -20 °C | |
| Shear Strength (5 d @ 22 °C) | Aluminum (etched) | 12.8 N/mm² (1850 psi) |
| Polycarbonate | 10.8 N/mm² (1570 psi) | |
| Epoxy | 15.8 N/mm² (2290 psi) | |
| Glass | 2.4 N/mm² (350 psi) | |
| ABS | 2.0 N/mm² (290 psi) | |
| PVC | 7.8 N/mm² (1130 psi) | |
| Stainless Steel | 2.2 N/mm² (320 psi) |
