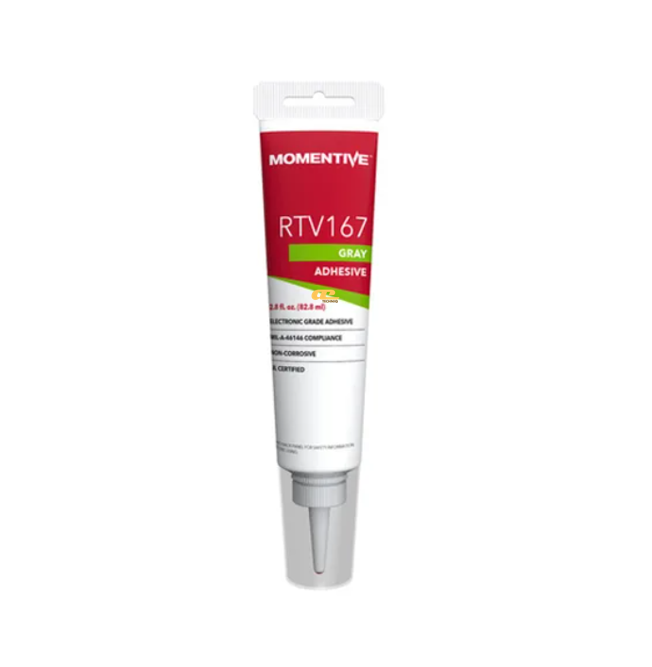

Item Name: RTV160, RTV162, RTV167
Manufacturer: Momentive Performance Materials
Technologies: One-component, electronic-grade silicone adhesive sealants
Color: RTV160 – White (flowable), RTV162 – White (paste), RTV167 – Gray (high strength paste)
Cure Type: Room temperature, moisture cure
Package Size: Caulking cartridges, squeeze tubes (RTV162/RTV167), bulk containers – Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
RTV160, RTV162, and RTV167 are one-component, ready-to-use electronic-grade silicone adhesive sealants from Momentive Performance Materials. They cure at room temperature upon exposure to atmospheric moisture, forming a tough and resilient silicone rubber. Differences among them lie in color and consistency: RTV160 is a white flowable paste, RTV162 is a white paste, and RTV167 is a gray, high-strength paste. These sealants are non-corrosive to electronic metals, low odor, UL recognized, retain elastomeric properties across a wide temperature range, and exhibit excellent electrical insulation, moisture, dust, UV, ozone, and chemical resistance.
Aerospace, automotive, and appliance industries incorporating electronic components.
RTV160: insulating, encapsulating, and coating in thin sections (<6 mm), filling small crevices.
RTV162: sealing and bonding electronic components on printed circuit boards and protecting copper connections.
RTV167: sealing and bonding applications requiring high strength.
Bonds to metals, glass, ceramic, silicone rubber, and some rigid plastics; primers recommended for difficult-to-bond substrates.
Before Mixing / Uncured
| Property | RTV160 | RTV162 | RTV167 |
|---|---|---|---|
| Color | White | White | Gray |
| Consistency | Flowable liquid | Spreadable paste | Spreadable paste |
| Viscosity (poise) | 380 | – | – |
| Specific Gravity | 1.04 | 1.09 | 1.12 |
| Application Rate (gm/min) | – | 350 | 180 |
| Tack-Free Time (hours) | 4 | 4 | 4 |
After Curing (7 days at 25°C, 50% RH)
| Property | RTV160 | RTV162 | RTV167 |
|---|---|---|---|
| Hardness (Shore A) | 25 | 35 | 37 |
| Tensile Strength (kg/cm²) | 19 | 38.2 | 56 |
| Elongation (%) | 230 | 400 | 600 |
| Peel Strength (kg/cm) | 2 | 7.2 | 10 |
| Dielectric Strength (kV/mm) | 20 | 18 | 20 |
| Dielectric Constant @ 60 Hz | 2.8 | 2.8 | 2.8 |
| Dissipation Factor @ 60 Hz | 0.001 | 0.001 | 0.0026 |
| Volume Resistivity (ohm-cm) | 4×10¹⁴ | 3×10¹⁵ | 3×10¹⁵ |
| Brittle Point (°C) | -60 | -60 | -60 |
| Max Continuous Temp (°C) | 204 | 204 | 204 |
| Max Intermittent Temp (°C) | 260 | 260 | 260 |
